Google Kubernetes Engine

This Integration is part of the Google Kubernetes Engine Pack.#

The Google Kubernetes Engine integration is used for building and managing container based applications in Google Cloud Platform (GCP), powered by the open source Kubernetes technology.

Command, argument, and output desctiptions were taken from the Google documentation.

Use Cases#

Mange existing GKE clusters.
Mange existing GKE node-pools.

Playbooks#

Google Kubernetes Engine Operations Generic Polling.

Configure Google Kubernetes Engine setup#

Select or create a Cloud Platform project:
The value in the ID column (marked in green) will be used from this point on as the project id.
Enable the Google Container Engine API:
1. Under the main menu, select APIs & Services -> 'Libary':
2. Search for Kubernetes Engine API:
3. Click Enable:
4. Select the project and click 'OPEN':
Create a service account with correct restricted permissions:
1. Under the main menu, select IAM & Admin -> Service Accounts:
2. In the top bar, select CREATE SERVICE ACCOUNT:
3. In step number 2, under role, select Kubernetes Engine Admin:
4. Under the main menu, select IAM & Admin -> Service Accounts and open the account you just created.
5. Generate new credentials:
  1. On the Service account details page, under Keys, click ADD KEY and select Create new key:

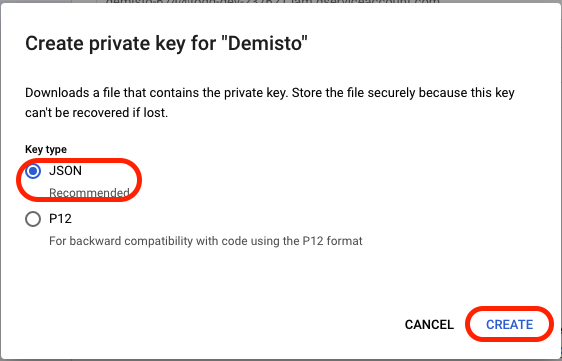

  2. Under Key type, select `JSON` and click `CREATE`. Save the credentials in a secure location. You will need the generated `credentials.json` file when you configure the instance in Cortex XSOAR:

     <img src="https://github.com/demisto/content/raw/2ee9f543ab14293cef22d46e96f7f29c4b376502/Packs/GoogleKubernetesEngine/doc_files/service-account-create-4.png" alt="create-3"  />

Configure GoogleKubernetesEngine on Cortex XSOAR#

Navigate to Settings > Integrations > Servers & Services.
Search for GoogleKubernetesEngine.
Generate credentials.json file by instruction in Google documentation.
Click Add instance to create and configure a new integration instance.

Parameter	Description	Required
credentials_json	JSON credentials - The content of the generated `credentials.json` file.	True
default_project	Default project id - Can be overwriten in commands execution.	True
default_zone	Default zone - Can be overwriten in commands execution.	True

Click Test to validate the URLs, credentials.json, and connection.

Commands#

You can execute these commands from the Cortex XSOAR CLI, as part of an automation, or in a playbook. After you successfully execute a command, a DBot message appears in the War Room with the command details.

gcloud-clusters-list#

Lists all clusters owned by a project in either the specified zone or all zones.

Base Command#

gcloud-clusters-list

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
zone	The name of the Google Compute Engine zone in which the cluster resides, leave empty for all zones.	Optional

Context Output#

Path	Type	Description
GKE.Cluster.Name	String	Cluster name.
GKE.Cluster.MasterAuth.ClusterCaCertificate	String	Base64-encoded public certificate that is the root of trust for the cluster.
GKE.Cluster.LoggingService	String	The logging service the cluster should use to write metrics.
GKE.Cluster.MonitoringService	String	The monitoring service the cluster should use to write metrics.
GKE.Cluster.Network	String	The name of the Google Compute Engine network to which the cluster is connected. If left unspecified, the default network will be used.
GKE.Cluster.ClusterIpv4Cidr	String	The IP address range of the container pods in this cluster, in CIDR notation (e.g. 10.0.0.24).
GKE.Cluster.AddonsConfig.HttpLoadBalancing.Disabled	Boolean	Configuration for the http load balancing addon.
GKE.Cluster.AddonsConfig.HorizontalPodAutoscaling.Disabled	Boolean	Configuration for the horizontal pod autoscaling addon.
GKE.Cluster.AddonsConfig.KubernetesDashboard.Disabled	Boolean	Configuration for the kubernetes dashboard addon.
GKE.Cluster.AddonsConfig.NetworkPolicyConfig.Disabled	Boolean	Configuration for the network policy config addon.
GKE.Cluster.LegacyAbac.Enabled	Boolean	Configuration for the Legacy ABAC.
GKE.Cluster.SubNetwork	String	The name of the Google Compute Engine subnetwork to which the cluster is connected.
GKE.Cluster.NodePool.Name	String	Node pool name.
GKE.Cluster.NodePool.Config.MachineType	String	Node pool machine type.
GKE.Cluster.NodePool.Config.DiskSizeGb	Number	Size of the disk attached to each node, specified in GB.
GKE.Cluster.NodePool.Config.OauthScopes	String	The set of Google API scopes to be made available on all of the node VMs under the “default” service account.
GKE.Cluster.NodePool.Config.Metadata.disable-legacy-endpoints	String	legacy abac Status.
GKE.Cluster.NodePool.Config.ImageType	String	The desired image type for the node pool.
GKE.Cluster.NodePool.Config.ServiceAccount	String	The Google Cloud Platform Service Account to be used by the node VMs. If no Service Account is specified, the “default” service account is used.
GKE.Cluster.NodePool.Config.DiskType	String	Type of the disk attached to each node (e.g. ‘pd-standard’ or ‘pd-ssd’) If unspecified, the default disk type is ‘pd- standard’.
GKE.Cluster.NodePool.Config.ShieldedInstanceConfig.EnableIntegrityMonitoring	Number	Defines whether the instance has integrity monitoring enabled.
GKE.Cluster.NodePool.InitialNodeCount	Number	The initial node count for the pool.
GKE.Cluster.NodePool.Autoscaling.Enabled	Number	Status of autoscaling.
GKE.Cluster.NodePool.Autoscaling.MinNodeCount	Number	Minimum number of nodes in the NodePool. Must be >= 1 and <= max_node_count.
GKE.Cluster.NodePool.Autoscaling.MaxNodeCount	Number	Maximum number of nodes in the NodePool. Must be >= min_node_count. There has to enough quota to scale up the cluster.
GKE.Cluster.NodePool.Management.AutoRepair	Number	A flag that specifies whether the node auto-repair is enabled for the node pool.
GKE.Cluster.NodePool.MaxPodsConstraint.MaxPodsPerNode	String	The constraint on the maximum number of pods that can be run simultaneously on a node in the node pool.
GKE.Cluster.NodePool.PodIpv4CidrSize	Number	The pod CIDR block size per node in this node pool.
GKE.Cluster.NodePool.SelfLink	String	Server-defined URL for the resource.
GKE.Cluster.NodePool.Version	String	The version of the Kubernetes of this node.
GKE.Cluster.NodePool.InstanceGroupUrls	String	The resource URLs of the managed instance groups associated with this node pool.
GKE.Cluster.NodePool.Status	String	The status of the nodes in this pool instance.
GKE.Cluster.Locations	String	The desired list of Google Compute Engine zones in which the cluster’s nodes should be located.
GKE.Cluster.LabelFingerprint	String	The fingerprint of the set of labels for this cluster.
GKE.Cluster.IpAllocationPolicy.UseIpAliases	Number	Whether alias IPs will be used for pod IPs in the cluster.
GKE.Cluster.IpAllocationPolicy.ClusterIpv4Cidr	String	The IP address range of the container pods in this cluster, in CIDR notation (e.g. 10.0.0.0/24).
GKE.Cluster.IpAllocationPolicy.ServicesIpv4Cidr	String	The IP address range of the Kubernetes services in this cluster, in CIDR notation (e.g. 10.0.0.0/24).
GKE.Cluster.IpAllocationPolicy.ClusterSecondaryRangeName	String	The name of the secondary range to be used for the cluster CIDR block. The secondary range will be used for pod IP addresses.
GKE.Cluster.IpAllocationPolicy.ServicesSecondaryRangeName	String	The name of the secondary range to be used as for the services CIDR block. The secondary range will be used for service ClusterIPs.
GKE.Cluster.IpAllocationPolicy.ClusterIpv4CidrBlock	String	The IP address range for the cluster pod IPs.
GKE.Cluster.IpAllocationPolicy.ServicesIpv4CidrBlock	String	The IP address range of the services IPs in this cluster.
GKE.Cluster.MasterAuthorizedNetworksConfig.CIDR	String	CIDR which allowed to access master when enabled.
GKE.Cluster.MasterAuthorizedNetworksConfig.Enabled	String	CIDR which allowed to access master when enabled.
GKE.Cluster.MaintenancePolicy.ResourceVersion	String	A hash identifying the version of this policy.
GKE.Cluster.NetworkConfig.Network	String	The relative name of the Google Compute Engine.
GKE.Cluster.NetworkConfig.Subnetwork	String	The relative name of the Google Compute Engine subnetwork to which the cluster is connected.
GKE.Cluster.DefaultMaxPodsConstraint.MaxPodsPerNode	String	Constraint enforced on the max num of pods per node.
GKE.Cluster.DatabaseEncryption.State	String	Configuration of etcd encryption.
GKE.Cluster.SelfLink	String	erver-defined URL for the resource.
GKE.Cluster.Endpoint	String	The IP address of this cluster’s master endpoint.
GKE.Cluster.InitialClusterVersion	String	The initial Kubernetes version for this cluster.
GKE.Cluster.CurrentMasterVersion	String	The current software version of the master endpoint.
GKE.Cluster.CreateTime	Date	The time the cluster was created, in RFC3339 text format.
GKE.Cluster.Status	String	The current status of this cluster.
GKE.Cluster.ServicesIpv4Cidr	String	The IP address range of the Kubernetes services in this cluster, in CIDR notation (e.g. 10.0.0.0/24).'
GKE.Cluster.Location	String	The name of the Google Compute Engine zone or region in which the cluster resides.

Command Example#

!gcloud-clusters-list project=gcp-integrations zone=us-central1-c

Context Example#

{
    "GKE": {
        "Cluster": {
            "AddonsConfig": {
                "HorizontalPodAutoscaling": {
                    "Disabled": {}
                },
                "HttpLoadBalancing": {
                    "Disbaled": {}
                },
                "KubernetesDashboard": {
                    "Disabled": true
                },
                "NetworkPolicyConfig": {
                    "Disabled": null
                }
            },
            "AuthenticatorGroupsConfig": {},
            "ClusterIpv4Cidr": "xxxx",
            "CreateTime": "xxxx",
            "CurrentMasterVersion": "xxxx",
            "DatabaseEncryption": {
                "State": "DECRYPTED"
            },
            "DefaultMaxPodsConstraint": {
                "MaxPodsPerNode": "110"
            },
            "Endpoint": "xxxx",
            "InitialClusterVersion": "xxxx",
            "IpAllocationPolicy": {
                "ClusterIpv4Cidr": "xxxx",
                "ClusterIpv4CidrBlock": "xxxx",
                "ClusterSecondaryRangeName": "xxxx",
                "ServicesIpv4Cidr": "xxxx",
                "ServicesIpv4CidrBlock": "xxxx",
                "ServicesSecondaryRangeName": "xxxx",
                "UseIpAliases": true
            },
            "LabelFingerprint": "xxxx",
            "LegacyAbac": {
                "Enabled": null
            },
            "Location": "xxxx",
            "Locations": [
                "xxxx"
            ],
            "LoggingService": "google.com",
            "MaintenancePolicy": {
                "ResourceVersion": "xxxx"
            },
            "MasterAuth": {
                "ClusterCaCertificate": "xxxx"
            },
            "MasterAuthorizedNetworksConfig": {
                "CIDR": [],
                "Enabled": null
            },
            "MonitoringService": "google.com",
            "Name": "xxxx",
            "Network": "default",
            "NetworkConfig": {
                "Network": "xxxx",
                "Subnetwork": "xxxx"
            },
            "NetworkPolicy": {},
            "NodePools": [
                {
                    "Autoscaling": {
                        "Enabled": null,
                        "MaxNodeCount": null,
                        "MinNodeCount": null
                    },
                    "Config": {
                        "DiskSizeGb": 100,
                        "DiskType": "xxxx",
                        "ImageType": "xxxx",
                        "MachineType": "xxxx",
                        "Metadata": {
                            "DisableLegacyEndpoints": "true"
                        },
                        "OauthScopes": [
                            "https://www.google.com/auth/devstorage.read_only",
                            "https://www.google.com/auth/logging.write",
                            "https://www.google.com/auth/monitoring",
                            "https://www.google.com/auth/servicecontrol",
                            "https://www.google.com/auth/service.management.readonly",
                            "https://www.google.com/auth/trace.append"
                        ],
                        "ServiceAccount": "xxxx",
                        "ShieldedInstanceConfig": {
                            "EnableIntegrityMonitoring": true
                        }
                    },
                    "InitialNodeCount": 3,
                    "InstanceGroupUrls": [
                        "https://www.google.com/compute/v1/projects/"
                    ],
                    "Management": {
                        "AutoRepair": true
                    },
                    "MaxPodsConstraint": {
                        "MaxPodsPerNode": "110"
                    },
                    "Name": "default-pool",
                    "PodIpv4CidrSize": 24,
                    "SelfLink": "https://.googleapis.com/v1/projects/",
                    "Status": "RUNNING",
                    "Version": "xxxx"
                }
            ],
            "SelfLink": "https://.googleapis.com/v1/projects/",
            "ServicesIpv4Cidr": "xxxx",
            "Status": "RECONCILING",
            "SubNetwork": "default"
        }
    }
}

Human Readable Output#

Clusters (Project=gcp-integrations, Zone=us-central1-c)#

Location Master IP Master version Name Status
us-central1-c xxxx xxxx xxxx RECONCILING

Location	Master IP	Master version	Name	Status
us-central1-c	xxxx	xxxx	xxxx	RECONCILING

gcloud-clusters-describe#

Gets the details of a specific cluster.

Base Command#

gcloud-clusters-describe

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional

Context Output#

Path	Type	Description
GKE.Cluster.Name	String	Cluster name.
GKE.Cluster.MasterAuth.ClusterCaCertificate	String	Base64-encoded public certificate that is the root of trust for the cluster.
GKE.Cluster.LoggingService	String	The logging service the cluster should use to write metrics.
GKE.Cluster.MonitoringService	String	The monitoring service the cluster should use to write metrics.
GKE.Cluster.Network	String	The name of the Google Compute Engine network to which the cluster is connected. If left unspecified, the default network will be used.
GKE.Cluster.ClusterIpv4Cidr	String	The IP address range of the container pods in this cluster, in CIDR notation (e.g. 10.0.0.0/24).
GKE.Cluster.AddonsConfig.HttpLoadBalancing.Disabled	Boolean	Configuration for the http load balancing addon.
GKE.Cluster.AddonsConfig.HorizontalPodAutoscaling.Disabled	Boolean	Configuration for the horizontal pod autoscaling addon.
GKE.Cluster.AddonsConfig.KubernetesDashboard.Disabled	Boolean	Configuration for the kubernetes dashboard addon.
GKE.Cluster.AddonsConfig.NetworkPolicyConfig.Disabled	Boolean	Configuration for the network policy config addon.
GKE.Cluster.LegacyAbac.Enabled	Boolean	Configuration for the Legacy ABAC.
GKE.Cluster.SubNetwork	String	The name of the Google Compute Engine subnetwork to which the cluster is connected.
GKE.Cluster.NodePool.Name	String	Node pool name.
GKE.Cluster.NodePool.Config.MachineType	String	Node pool machine type.
GKE.Cluster.NodePool.Config.DiskSizeGb	Number	Size of the disk attached to each node, specified in GB.
GKE.Cluster.NodePool.Config.OauthScopes	String	The set of Google API scopes to be made available on all of the node VMs under the “default” service account.
GKE.Cluster.NodePool.Config.Metadata.disable-legacy-endpoints	String	legacy abac Status.
GKE.Cluster.NodePool.Config.ImageType	String	The desired image type for the node pool.
GKE.Cluster.NodePool.Config.ServiceAccount	String	The Google Cloud Platform Service Account to be used by the node VMs. If no Service Account is specified, the “default” service account is used.
GKE.Cluster.NodePool.Config.DiskType	String	Type of the disk attached to each node (e.g. ‘pd-standard’ or ‘pd-ssd’) If unspecified, the default disk type is ‘pd- standard’.
GKE.Cluster.NodePool.Config.ShieldedInstanceConfig.EnableIntegrityMonitoring	Number	Defines whether the instance has integrity monitoring enabled.
GKE.Cluster.NodePool.InitialNodeCount	Number	The initial node count for the pool.
GKE.Cluster.NodePool.Autoscaling.Enabled	Number	Status of autoscaling.
GKE.Cluster.NodePool.Autoscaling.MinNodeCount	Number	Minimum number of nodes in the NodePool. Must be >= 1 and <= max_node_count.
GKE.Cluster.NodePool.Autoscaling.MaxNodeCount	Number	Maximum number of nodes in the NodePool. Must be >= min_node_count. There has to enough quota to scale up the cluster.
GKE.Cluster.NodePool.Management.AutoRepair	Number	A flag that specifies whether the node auto-repair is enabled for the node pool.
GKE.Cluster.NodePool.MaxPodsConstraint.MaxPodsPerNode	String	The constraint on the maximum number of pods that can be run simultaneously on a node in the node pool.
GKE.Cluster.NodePool.PodIpv4CidrSize	Number	The pod CIDR block size per node in this node pool.
GKE.Cluster.NodePool.SelfLink	String	Server-defined URL for the resource.
GKE.Cluster.NodePool.Version	String	The version of the Kubernetes of this node.
GKE.Cluster.NodePool.InstanceGroupUrls	String	The resource URLs of the managed instance groups associated with this node pool.
GKE.Cluster.NodePool.Status	String	The status of the nodes in this pool instance.
GKE.Cluster.Locations	String	The desired list of Google Compute Engine zones in which the cluster’s nodes should be located.
GKE.Cluster.LabelFingerprint	String	The fingerprint of the set of labels for this cluster.
GKE.Cluster.IpAllocationPolicy.UseIpAliases	Number	Whether alias IPs will be used for pod IPs in the cluster.
GKE.Cluster.IpAllocationPolicy.ClusterIpv4Cidr	String	The IP address range of the container pods in this cluster, in CIDR notation (e.g. 10.0.0.0/24).
GKE.Cluster.IpAllocationPolicy.ServicesIpv4Cidr	String	The IP address range of the Kubernetes services in this cluster, in CIDR notation (e.g. 10.0.0.0/24).
GKE.Cluster.IpAllocationPolicy.ClusterSecondaryRangeName	String	The name of the secondary range to be used for the cluster CIDR block. The secondary range will be used for pod IP addresses.
GKE.Cluster.IpAllocationPolicy.ServicesSecondaryRangeName	String	The name of the secondary range to be used as for the services CIDR block. The secondary range will be used for service ClusterIPs.
GKE.Cluster.IpAllocationPolicy.ClusterIpv4CidrBlock	String	The IP address range for the cluster pod IPs.
GKE.Cluster.IpAllocationPolicy.ServicesIpv4CidrBlock	String	The IP address range of the services IPs in this cluster.
GKE.Cluster.MasterAuthorizedNetworksConfig.CIDR	String	CIDR which allowed to access master when enabled.
GKE.Cluster.MasterAuthorizedNetworksConfig.Enabled	String	CIDR which allowed to access master when enabled.
GKE.Cluster.MaintenancePolicy.ResourceVersion	String	A hash identifying the version of this policy.
GKE.Cluster.NetworkConfig.Network	String	The relative name of the Google Compute Engine.
GKE.Cluster.NetworkConfig.Subnetwork	String	The relative name of the Google Compute Engine subnetwork to which the cluster is connected.
GKE.Cluster.DefaultMaxPodsConstraint.MaxPodsPerNode	String	Constraint enforced on the max num of pods per node.
GKE.Cluster.DatabaseEncryption.State	String	Configuration of etcd encryption.
GKE.Cluster.SelfLink	String	erver-defined URL for the resource.
GKE.Cluster.Endpoint	String	The IP address of this cluster’s master endpoint.
GKE.Cluster.InitialClusterVersion	String	The initial Kubernetes version for this cluster.
GKE.Cluster.CurrentMasterVersion	String	The current software version of the master endpoint.
GKE.Cluster.CreateTime	Date	The time the cluster was created, in RFC3339 text format.
GKE.Cluster.Status	String	The current status of this cluster.
GKE.Cluster.ServicesIpv4Cidr	String	The IP address range of the Kubernetes services in this cluster, in CIDR notation (e.g. 10.0.0.0/24).'
GKE.Cluster.Location	String	The name of the Google Compute Engine zone or region in which the cluster resides.

Command Example#

!gcloud-clusters-describe project=gcp-integrations zone=us-central1-c cluster=xsoar-integration

Context Example#

{
    "GKE": {
        "Cluster": {
            "AddonsConfig": {
                "HorizontalPodAutoscaling": {
                    "Disabled": {}
                },
                "HttpLoadBalancing": {
                    "Disbaled": {}
                },
                "KubernetesDashboard": {
                    "Disabled": true
                },
                "NetworkPolicyConfig": {
                    "Disabled": null
                }
            },
            "AuthenticatorGroupsConfig": {},
            "ClusterIpv4Cidr": "xxxx",
            "CreateTime": "xxxx",
            "CurrentMasterVersion": "xxxx",
            "DatabaseEncryption": {
                "State": "DECRYPTED"
            },
            "DefaultMaxPodsConstraint": {
                "MaxPodsPerNode": "110"
            },
            "Endpoint": "xxxx",
            "InitialClusterVersion": "xxxx",
            "IpAllocationPolicy": {
                "ClusterIpv4Cidr": "xxxx",
                "ClusterIpv4CidrBlock": "xxxx",
                "ClusterSecondaryRangeName": "xxxx",
                "ServicesIpv4Cidr": "xxxx",
                "ServicesIpv4CidrBlock": "xxxx",
                "ServicesSecondaryRangeName": "xxxx",
                "UseIpAliases": true
            },
            "LabelFingerprint": "xxxx",
            "LegacyAbac": {
                "Enabled": null
            },
            "Location": "xxxx",
            "Locations": [
                "xxxx"
            ],
            "LoggingService": "google.com",
            "MaintenancePolicy": {
                "ResourceVersion": "xxxx"
            },
            "MasterAuth": {
                "ClusterCaCertificate": "xxxx"
            },
            "MasterAuthorizedNetworksConfig": {
                "CIDR": [],
                "Enabled": null
            },
            "MonitoringService": "google.com",
            "Name": "xxxx",
            "Network": "default",
            "NetworkConfig": {
                "Network": "xxxx",
                "Subnetwork": "xxxx"
            },
            "NetworkPolicy": {},
            "NodePools": [
                {
                    "Autoscaling": {
                        "Enabled": null,
                        "MaxNodeCount": null,
                        "MinNodeCount": null
                    },
                    "Config": {
                        "DiskSizeGb": 100,
                        "DiskType": "xxxx",
                        "ImageType": "xxxx",
                        "MachineType": "xxxx",
                        "Metadata": {
                            "DisableLegacyEndpoints": "true"
                        },
                        "OauthScopes": [
                            "https://www.google.com/auth/devstorage.read_only",
                            "https://www.google.com/auth/logging.write",
                            "https://www.google.com/auth/monitoring",
                            "https://www.google.com/auth/servicecontrol",
                            "https://www.google.com/auth/service.management.readonly",
                            "https://www.google.com/auth/trace.append"
                        ],
                        "ServiceAccount": "xxxx",
                        "ShieldedInstanceConfig": {
                            "EnableIntegrityMonitoring": true
                        }
                    },
                    "InitialNodeCount": 3,
                    "InstanceGroupUrls": [
                        "https://www.google.com/compute/v1/projects/"
                    ],
                    "Management": {
                        "AutoRepair": true
                    },
                    "MaxPodsConstraint": {
                        "MaxPodsPerNode": "110"
                    },
                    "Name": "default-pool",
                    "PodIpv4CidrSize": 24,
                    "SelfLink": "https://.googleapis.com/v1/projects/",
                    "Status": "RUNNING",
                    "Version": "xxxx"
                }
            ],
            "SelfLink": "https://.googleapis.com/v1/projects/",
            "ServicesIpv4Cidr": "xxxx",
            "Status": "RECONCILING",
            "SubNetwork": "default"
        }
    }
}

Human Readable Output#

Clusters (Project=gcp-integrations, Zone=us-central1-c, Cluster=xsoar-integration)#

Location Master IP Master version Name Status
us-central1-c xxxx xxxx xxxx RECONCILING

Location	Master IP	Master version	Name	Status
us-central1-c	xxxx	xxxx	xxxx	RECONCILING

gcloud-clusters-set-muster-auth#

Enable basic (username/password) auth for the cluster. Enable will create user admin with generated password.

Base Command#

gcloud-clusters-set-muster-auth

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
basic_auth	Sets master enabled or disabled.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-muster-auth project=gcp-integrations zone=us-central1-c cluster=xsoar-integration basic_auth=enable

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-clusters-set-addons#

Sets the addons for a specific cluster.

Base Command#

gcloud-clusters-set-addons

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
http_load_balancing	Configuration for the HTTP (L7) load balancing controller addon, which makes it easy to set up HTTP load balancers for services in a cluster.	Optional
kubernetes_dashboard	Configuration for the Kubernetes Dashboard.	Optional
network_policy	Configuration for NetworkPolicy. This only tracks whether the addon is enabled or not on the Master, it does not track whether network policy is enabled for the nodes.	Optional

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-addons project=gcp-integrations zone=us-central1-c cluster=xsoar-integration http_load_balancing=enable kubernetes_dashboard=disable network_policy=enable

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-clusters-set-legacy-auth#

Configuration for the legacy Attribute Based Access Control authorization mode.

Base Command#

gcloud-clusters-set-legacy-auth

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
enable	Whether the ABAC authorizer is enabled for this cluster. When enabled, identities in the system, including service accounts, nodes, and controllers, will have statically granted permissions beyond those provided by the RBAC configuration or IAM.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-legacy-auth project=gcp-integrations zone=us-central1-c cluster=xsoar-integration enable=true

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-clusters-set-master-authorized-network#

Configuration options for the master authorized networks feature. Enabled master authorized networks will disallow all external traffic to access Kubernetes master through HTTPS except traffic from the given CIDR blocks, Google Compute Engine Public IPs and Google Prod IPs.

Base Command#

gcloud-clusters-set-master-authorized-network

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
enable	Whether or not master authorized networks is enabled.	Required
cidrs	Cidrs define up to 50 external networks that could access Kubernetes master through HTTPS. Comma-seprated e.g. "192.168.0.0/24,10.0.0.0/32"	Optional

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-master-authorized-network project=gcp-integrations zone=us-central1-c cluster=xsoar-integration enable=true cidrs=192.168.0.0/24

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-clusters-set-k8s-stackdriver#

Enable or Disable k8s stackdriver. Important - To use this functinality the user should enable manually logging to "monitoring.googleapis.com/kubernetes" manulally via the GCP console.

Base Command#

gcloud-clusters-set-k8s-stackdriver

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Required
enable	Whether or not k8s stackdriver is enabled.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-master-authorized-network project=gcp-integrations zone=us-central1-c cluster=xsoar-integration enable=true cidrs=192.168.0.0.24

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-clusters-set-binary-auth#

Enable or Disable binary auth.

Base Command#

gcloud-clusters-set-binary-auth

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
enable	Whether or not master binary auth is enabled.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-binary-auth project=gcp-integrations zone=us-central1-c cluster=xsoar-integration enable=true

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-clusters-set-intra-node-visibility#

Enable or Disable for intra node visibility in cluster.

Base Command#

gcloud-clusters-set-intra-node-visibility

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
enable	Whether or not intra node visibility is enabled.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-clusters-set-intra-node-visibility project=gcp-integrations zone=us-central1-c cluster=xsoar-integration enable=true

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-node-pool-list#

Lists the node pools for a cluster.

Base Command#

gcloud-node-pool-list

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional

Context Output#

Path	Type	Description
GKE.NodePool.Name	String	Node pool name.
GKE.NodePool.Config.MachineType	String	Node pool machine type.
GKE.NodePool.Config.DiskSizeGb	Number	Size of the disk attached to each node, specified in GB.
GKE.NodePool.Config.OauthScopes	String	The set of Google API scopes to be made available on all of the node VMs under the “default” service account.
GKE.NodePool.Config.Metadata.disable-legacy-endpoints	String	legacy abac Status.
GKE.NodePool.Config.ImageType	String	The desired image type for the node pool.
GKE.NodePool.Config.ServiceAccount	String	The Google Cloud Platform Service Account to be used by the node VMs. If no Service Account is specified, the “default” service account is used.
GKE.NodePool.Config.DiskType	String	Type of the disk attached to each node (e.g. ‘pd-standard’ or ‘pd-ssd’) If unspecified, the default disk type is ‘pd- standard’.
GKE.NodePool.Config.ShieldedInstanceConfig.EnableIntegrityMonitoring	Number	Defines whether the instance has integrity monitoring enabled.
GKE.NodePool.InitialNodeCount	Number	The initial node count for the pool.
GKE.NodePool.Autoscaling.Enabled	Number	Status of autoscaling.
GKE.NodePool.Autoscaling.MinNodeCount	Number	Minimum number of nodes in the NodePool. Must be >= 1 and <= max_node_count.
GKE.NodePool.Autoscaling.MaxNodeCount	Number	Maximum number of nodes in the NodePool. Must be >= min_node_count. There has to enough quota to scale up the cluster.
GKE.NodePool.Management.AutoRepair	Number	A flag that specifies whether the node auto-repair is enabled for the node pool.
GKE.NodePool.MaxPodsConstraint.MaxPodsPerNode	String	The constraint on the maximum number of pods that can be run simultaneously on a node in the node pool.
GKE.NodePool.PodIpv4CidrSize	Number	The pod CIDR block size per node in this node pool.
GKE.NodePool.SelfLink	String	Server-defined URL for the resource.
GKE.NodePool.Version	String	The version of the Kubernetes of this node.
GKE.NodePool.InstanceGroupUrls	String	The resource URLs of the managed instance groups associated with this node pool.
GKE.NodePool.Status	String	The status of the nodes in this pool instance.

Command Example#

!gcloud-node-pool-list project=gcp-integrations zone=us-central1-c cluster=xsoar-integration

Context Example#

{
    "GKE": {
        "NodePool": {
            "Autoscaling": {
                "Enabled": null,
                "MaxNodeCount": null,
                "MinNodeCount": null
            },
            "Config": {
                "DiskSizeGb": 100,
                "DiskType": "xxxx",
                "ImageType": "xxxx",
                "MachineType": "xxxx",
                "Metadata": {
                    "DisableLegacyEndpoints": "true"
                },
                "OauthScopes": [
                    "https://www.google.com/auth/devstorage.read_only",
                    "https://www.google.com/auth/logging.write",
                    "https://www.google.com/auth/monitoring",
                    "https://www.google.com/auth/servicecontrol",
                    "https://www.google.com/auth/service.management.readonly",
                    "https://www.google.com/auth/trace.append"
                ],
                "ServiceAccount": "default",
                "ShieldedInstanceConfig": {
                    "EnableIntegrityMonitoring": true
                }
            },
            "InitialNodeCount": 3,
            "InstanceGroupUrls": [
                "https://www.google.com/compute/v1/projects/"
            ],
            "Management": {
                "AutoRepair": true
            },
            "MaxPodsConstraint": {
                "MaxPodsPerNode": "110"
            },
            "Name": "xxxx",
            "PodIpv4CidrSize": 24,
            "SelfLink": "https://container.google.com/v1/projects/",
            "Status": "RUNNING",
            "Version": "xxxx"
        }
    }
}

Human Readable Output#

Node-pools (Project=gcp-integrations, Zone=us-central1-c, Cluster=xsoar-integration)#

Disk size Machine Type Name Node version
100 n1-standard-1 default-pool 1.16.9-gke.2

Disk size	Machine Type	Name	Node version
100	n1-standard-1	default-pool	1.16.9-gke.2

gcloud-node-pool-describe#

Retrieves the requested node pool.

Base Command#

gcloud-node-pool-describe

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
node_pool	The name of the Google Compute Engine node pool.	Required

Context Output#

Path	Type	Description
GKE.NodePool.Name	String	Node pool name.
GKE.NodePool.Config.MachineType	String	Node pool machine type.
GKE.NodePool.Config.DiskSizeGb	Number	Size of the disk attached to each node, specified in GB.
GKE.NodePool.Config.OauthScopes	String	The set of Google API scopes to be made available on all of the node VMs under the “default” service account.
GKE.NodePool.Config.Metadata.disable-legacy-endpoints	String	legacy abac Status.
GKE.NodePool.Config.ImageType	String	The desired image type for the node pool.
GKE.NodePool.Config.ServiceAccount	String	The Google Cloud Platform Service Account to be used by the node VMs. If no Service Account is specified, the “default” service account is used.
GKE.NodePool.Config.DiskType	String	Type of the disk attached to each node (e.g. ‘pd-standard’ or ‘pd-ssd’) If unspecified, the default disk type is ‘pd- standard’.
GKE.NodePool.Config.ShieldedInstanceConfig.EnableIntegrityMonitoring	Number	Defines whether the instance has integrity monitoring enabled.
GKE.NodePool.InitialNodeCount	Number	The initial node count for the pool.
GKE.NodePool.Autoscaling.Enabled	Number	Status of autoscaling.
GKE.NodePool.Autoscaling.MinNodeCount	Number	Minimum number of nodes in the NodePool. Must be >= 1 and <= max_node_count.
GKE.NodePool.Autoscaling.MaxNodeCount	Number	Maximum number of nodes in the NodePool. Must be >= min_node_count. There has to enough quota to scale up the cluster.
GKE.NodePool.Management.AutoRepair	Number	A flag that specifies whether the node auto-repair is enabled for the node pool.
GKE.NodePool.MaxPodsConstraint.MaxPodsPerNode	String	The constraint on the maximum number of pods that can be run simultaneously on a node in the node pool.
GKE.NodePool.PodIpv4CidrSize	Number	The pod CIDR block size per node in this node pool.
GKE.NodePool.SelfLink	String	Server-defined URL for the resource.
GKE.NodePool.Version	String	The version of the Kubernetes of this node.
GKE.NodePool.InstanceGroupUrls	String	The resource URLs of the managed instance groups associated with this node pool.
GKE.NodePool.Status	String	The status of the nodes in this pool instance.

Command Example#

!gcloud-node-pool-describe project=gcp-integrations zone=us-central1-c cluster=xsoar-integration node_pool=default-pool

Context Example#

{
    "GKE": {
        "NodePool": {
            "Autoscaling": {
                "Enabled": null,
                "MaxNodeCount": null,
                "MinNodeCount": null
            },
            "Config": {
                "DiskSizeGb": 100,
                "DiskType": "xxxx",
                "ImageType": "xxxx",
                "MachineType": "xxxx",
                "Metadata": {
                    "DisableLegacyEndpoints": "true"
                },
                "OauthScopes": [
                    "https://www.google.com/auth/devstorage.read_only",
                    "https://www.google.com/auth/logging.write",
                    "https://www.google.com/auth/monitoring",
                    "https://www.google.com/auth/servicecontrol",
                    "https://www.google.com/auth/service.management.readonly",
                    "https://www.google.com/auth/trace.append"
                ],
                "ServiceAccount": "default",
                "ShieldedInstanceConfig": {
                    "EnableIntegrityMonitoring": true
                }
            },
            "InitialNodeCount": 3,
            "InstanceGroupUrls": [
                "https://www.google.com/compute/v1/projects/"
            ],
            "Management": {
                "AutoRepair": true
            },
            "MaxPodsConstraint": {
                "MaxPodsPerNode": "110"
            },
            "Name": "xxxx",
            "PodIpv4CidrSize": 24,
            "SelfLink": "https://container.google.com/v1/projects/",
            "Status": "RUNNING",
            "Version": "xxxx"
        }
    }
}

Human Readable Output#

Node-pools (Project=gcp-integrations, Zone=us-central1-c, Cluster=xsoar-integration, Node pool=default-pool)#

Disk size Machine Type Name Node version
100 xxxx xxxx xxxx

Disk size	Machine Type	Name	Node version
100	xxxx	xxxx	xxxx

gcloud-node-pool-set-management#

Sets the NodeManagement options for a node pool.

Base Command#

gcloud-node-pool-set-management

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
node_pool	The name of the Google Compute Engine node pool.	Required
auto_repair	A flag that specifies whether the node auto-repair is enabled for the node pool. If enabled, the nodes in this node pool will be monitored and, if they fail health checks too many times, an automatic repair action will be triggered.	Required
auto_upgrade	A flag that specifies whether node auto-upgrade is enabled for the node pool. If enabled, node auto-upgrade helps keep the nodes in your node pool up to date with the latest release version of Kubernetes.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-node-pool-set-management project=gcp-integrations zone=us-central1-c node_pool= auto_repair=false auto_upgrade=true

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#
Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-operations-list#

List operations in project-zone.

Base Command#

gcloud-operations-list

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-operations-list project=gcp-integrations zone=us-central1-c

Context Example#

{
    "GKE": {
        "Operation": [
             {
              "Name": "operation-xxxx",
              "OperationType": "UPDATE_CLUSTER",
              "SelfLink": "https://container.google.com/v1/projects/",
              "StartTime": "xxxx",
              "Status": "DONE",
              "TargetLink": "https://container.google.com/v1/projects/",
              "Zone": "xxxx"
                },
                {
              "Name": "operation-xxxx",
              "OperationType": "UPDATE_CLUSTER",
              "SelfLink": "https://container.google.com/v1/projects/",
              "StartTime": "xxxx",
              "Status": "DONE",
              "TargetLink": "https://container.google.com/v1/projects/",
              "Zone": "xxxx"
                }
        ]
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operations#

Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx
operation-xxxx	xxxx	DONE	xxxx

gcloud-operations-describe#

Retrieve operation information by name.

Base Command#

gcloud-operations-describe

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
operation	The name of the Google Compute Engine operation name.	Required

Context Output#

Path	Type	Description
GKE.Operation.Name	String	The server-assigned ID for the operation
GKE.Operation.Zone	String	The name of the Google Compute Engine zone in which the operation is taking place. This field is deprecated, use location instead.
GKE.Operation.OperationType	String	Operaion type. (update, etc.)
GKE.Operation.Status	String	Operation status (Running, Finished).
GKE.Operation.SelfLink	Unknown	Server-defined URL for the resource.
GKE.Operation.TargetLink	String	Server-defined URL for the target of the operation.
GKE.Operation.StartTime	Date	The time the operation started, in RFC3339 text format.

Command Example#

!gcloud-operations-describe project=gcp-integrations zone=us-central1-c operation=operation-1591773015046-cc1b6943

Context Example#

{
    "GKE": {
        "Operation": {
            "Name": "operation-xxxx",
            "OperationType": "UPDATE_CLUSTER",
            "SelfLink": "https://container.google.com/v1/projects/",
            "StartTime": "xxxx",
            "Status": "DONE",
            "TargetLink": "https://container.google.com/v1/projects/",
            "Zone": "xxxx"
        }
    }
}

Human Readable Output#

Project gcp-integrations - Zone us-central1-c - Operation operation-xxxx#

Name Zone Status StartTime
operation-xxxx xxxx DONE xxxx

Name	Zone	Status	StartTime
operation-xxxx	xxxx	DONE	xxxx

gcloud-operations-cancel#

Cancel operation by operation name.

Base Command#

gcloud-operations-cancel

Input#

Argument Name	Description	Required
project	The Google Developers Console project ID or project number.	Optional
cluster	The name of the cluster to retrieve. The name of the cluster to retrieve.	Required
zone	The name of the Google Compute Engine zone in which the cluster resides.	Optional
operation	The name of the Google Compute Engine operation name.	Required

Context Output#

There is no context output for this command.

Command Example#

!gcloud-operations-cancel project=gcp-integrations zone=xxxx operation=operation-xxxx

Human Readable Output#

Project gcp-integrations - Zone xxxx - Operation operation-xxxx canceled#

Known limitations#

After apply new configuration an operation in Google cloud will start, In order to apply another operation the operation must finish running, In order to handle this limitation you can use Google Kubernetes Engine Operations Generic Polling playbook.
