ServiceNow v2

This Integration is part of the ServiceNow Pack.

IT service management. Cortex XSOAR interfaces with ServiceNow to help streamline security-related service management and IT operations. For example, you can use the ServiceNow integration in order to:

• View, create, update or delete a ServiceNow ticket directly from the Cortex XSOAR CLI, and enrich it with Cortex XSOAR data.
• View, create, update and delete records from any ServiceNow table.
• Query ServiceNow data with the ServiceNow query syntax.
• Manage Security Incident Response (SIR) tickets with Cortex XSOAR, update tickets and enrich them with data.

Please refer to ServiceNow documentation for additional information. We especially recommend the Operators available for filters and queries page.

This integration was integrated and tested with the Xanadu version of ServiceNow.

This is the default integration for this content pack when configured by the Data Onboarder in Cortex XSIAM.

Use cases

1. Get, update, create, and delete ServiceNow tickets, as well as add links and comments, or upload files to the tickets.
2. Fetch newly created incidents.
3. Get, update, create, delete records from any ServiceNow table.

Required Permissions

To use ServiceNow on Cortex XSOAR, ensure your user account has the snc_platform_rest_api_access role. This role is required to make API calls. Also add to your user account the specific tables that you want to have access to. However, these permissions may not suffice for managing records in some tables. Make sure you have the correct role so you have permissions to work with the relevant table.

Wrapper Scripts

There are 3 scripts that serve as examples for wrapping the following generic commands: servicenow-query-table - ServiceNowQueryIncident servicenow-create-record - ServiceNowCreateIncident servicenow-update-record - ServiceNowUpdateIncident

You can use these scripts if you want to wrap these commands around a ServiceNow table of your choice. These scripts are wrapped around the incident table, so to wrap them around another table simply copy the scripts and edit the code, arguments and outputs accordingly.

Configure ServiceNow v2 on Cortex XSOAR

1. Navigate to Settings > Integrations > Servers & Services.

2. Search for ServiceNow v2.

3. Click Add instance to create and configure a new integration instance.

4. To ensure that mirroring works:

   1. Select the Fetches incidents radio button.

   2. Under Classifier, select ServiceNow Classifier.

   3. Under Mapper (incoming), select ServiceNow - Incoming Mapper.

   4. Under Mapper (outgoing), select ServiceNow - Outgoing Mapper.

   5. To enable mirroring to close a ticket in Cortex XSOAR, under the Mirrored XSOAR Ticket closure method dropdown, select the ticket closing method, or set the Mirrored XSOAR Ticket custom close resolution code or Mirrored XSOAR Ticket custom close state code parameter, in order to override the default closure method with a custom close code or custom state. In order to use Mirrored XSOAR Ticket custom close resolution code or Mirrored XSOAR Ticket custom close state code parameter, it must follow this format: "custom_state_code1=custom_label1,custom_state_code2=custom_label2,...", for example: “10=Design,11=Development,12=Testing”. Also, a matching user-defined list of customized incident close reasons must be configured as a "Server configuration" in Cortex XSOAR. (Meaning each Service Now custom state label will have a matching Cortex XSOAR custom close reason with the same name). Not following this format will result in a server error! For more information about Customize Incident Close Reasons, see Cortex XSOAR 6.13 or Cortex XSOAR 8 Cloud or Cortex XSOAR 8.7 On-prem.

   6. To enable mirroring to close an incident in ServiceNow, under the Mirrored ServiceNow Ticket closure method dropdown, select the ticket closing method, or set the Mirrored ServiceNow Ticket custom close state code parameter, in order to override the default closure method with a custom state.



Instance Creation Flow

This integration supports two types of authorization:

1. Basic authorization using username and password.
2. OAuth 2.0 authorization
3. JWT authentication.

OAuth 2.0 Authorization

To use OAuth 2.0 authorization follow the next steps:

1. Login to your ServiceNow instance and create an endpoint for XSOAR to access your instance (please see Snow OAuth for more information).
2. Copy the Client Id and Client Secret (press the lock next to the client secret to reveal it) that were automatically generated when creating the endpoint into the Username and Password fields of the instance configuration.
3. Select the Use OAuth Login checkbox and click the Done button.
4. Run the command !servicenow-oauth-login from the XSOAR CLI and fill in the username and password of the ServiceNow instance. This step generates an access token to the ServiceNow instance and is required only in the first time after configuring a new instance in the XSOAR platform.
5. (Optional) Test the created instance by running the !servicenow-oauth-test command.

Notes:

1. When running the !servicenow-oauth-login command, a refresh token is generated and will be used to produce new access tokens after the current access token has expired.
2. Every time the refresh token expires you will have to run the servicenow-oauth-login command again. Hence, we recommend setting the Refresh Token Lifespan field in the endpoint created in step 1 to a long period (can be set to several years).
3. The grant type used to get an access token is Resource owner password credentials. See the Snow documentation for more information.

JWT Authentication

Prerequisites in order to support JWT

1. Create a Java Key Store and upload it to the instance. (Accessing from the upper menu :Al > System Definition > Certificates.) (Private key will be used as an integration parameter)
2. Configure a JWT signing key (Use the keystore from above. Keep the Key ID. It will be used as kid integration parameter) (All > System OAuth > JWT Keys)
3. Create a JWT provider with a JWT signing key (You are required to set in Standard Claims the same values for aud, iss, and sub that will be used as integration parameters. Claim Name sub in Standard Claims has to be an existing non-admin ServiceNow user with all necessary roles.)

(All > System OAuth > JWT providers) 4. Connect to an OAuth provider and create an OAuth application registry (aud in JWT provider has to be equal to Client ID from OAuth JWT application - update JWT provider If necessary. The value of kid in JWT Verifier Maps has to be the same as Key Id in JWT signing key. The value can be updated if necessary.) (All > System OAuth > Application Registry)

5. Create an API Access Policy or add an Authentication profile to an existing Policy (All > System Web Services > API Access Policies > Rest API Access Policies )

IMPORTANT:

1. Standard Authentication Profile of type Oauth should already be present in ServiceNow and needs to be added to the Policy. API Access Policy should be configured as global in order to cover all available resources and not just now/table
2. Granting JWT to admin is not allowed. You should have a non-admin user with all necessary roles (only non-admin roles) in addition to the existing role snc_platform_rest_api_access that is required to make API calls.

Using Multi-Factor Authentication (MFA)

MFA can be used both when using basic authorization and when using OAuth 2.0 authorization, however we strongly recommend using OAuth 2.0 when using MFA. If MFA is enabled for your user, follow the next steps:

1. Open the Google Authenticator application on your mobile device and make note of the number. The number refreshes every 30 seconds.
2. Enter your username and password, and append the One Time Password (OTP) that you currently see on your mobile device to your password without any extra spaces. For example, if your password is 12345 and the current OTP code is 424 058, enter 12345424058.

Notes:

1. When using basic authorization, you will have to update your password with the current OTP every time the current code expires (30 seconds), hence we recommend using OAuth 2.0 authorization.

2. For using OAuth 2.0 see the above instructions. The OTP code should be appended to the password parameter in the !servicenow-oauth-login command.

   Parameter	Description	Required
   ServiceNow URL, in the format https://company.service-now.com/		True
   Username/Client ID		False
   Password		False
   Use OAuth Login	Select this checkbox if to use OAuth 2.0 authentication. See (?) for more information.	False
   Default ticket type for running ticket commands and fetching incidents	The ticket type can be: incident, problem, change_request, sc_request, sc_task or sc_req_item.	False
   ServiceNow API Version (e.g. 'v1')		False
   Fetch incidents		False
   The query to use when fetching incidents		False
   How many incidents to fetch each time		False
   First fetch timestamp (<number> <time unit>, e.g., 12 hours, 7 days, 3 months, 1 year)		False
   Timestamp field to filter by (e.g., opened_at) This is how the filter is applied to the query: "ORDERBYopened_at^opened_at>[Last Run]". To prevent duplicate incidents, this field is mandatory for fetching incidents.		False
   ServiceNow ticket column to be set as the incident name. Default is the incident number		False
   Incident type		False
   Get incident attachments		False
   Incident Mirroring Direction	Choose the direction to mirror the incident: Incoming (from ServiceNow to Cortex XSOAR), Outgoing (from Cortex XSOAR to ServiceNow), or Incoming and Outgoing (from/to Cortex XSOAR and ServiceNow).	False
   Use Display Value	Select this checkbox to retrieve comments and work notes without accessing the `sys_field_journal` table.	False
   Instance Date Format	Select the date format of your ServiceNow instance. Mandatory when using the `Use Display Value` option. More details under the troubleshooting section in the documentation of the integration. The integration supports the ServiceNow default time format (full form) HH:mm:ss with support to a notation for AM/PM.	False
   Comment Entry Tag	Choose the tag to add to an entry to mirror it as a comment in ServiceNow.	False
   Work Note Entry Tag	Choose the tag to add to an entry to mirror it as a work note in ServiceNow.	False
   File Entry Tag To ServiceNow	Choose the tag to add to an entry to mirror it as a file in ServiceNow.	False
   File Entry Tag From ServiceNow	Choose the tag to add to an entry to mirror it as a file from ServiceNow.	False
   Timestamp field to query for updates as part of the mirroring flow	According to the timestamp in this field, records will be queried to check for updates.	False
   How many incidents to mirror incoming each time	If a greater number of incidents than the limit were modified, then they won't be mirrored in.	False
   Custom Fields to Mirror	Custom (user defined) fields in the format: ufieldname1,u_fieldname2 custom fields start with a 'u'. These fields will be included in the mirroring capabilities, if added here.	False
   Mirrored XSOAR Ticket closure method	Define how to close the mirrored tickets in Cortex XSOAR. Choose 'resolved' to enable reopening from the UI. Otherwise, choose 'closed'. Choose 'None' to disable closing the mirrored tickets in Cortex XSOAR.	False
   Mirrored XSOAR Ticket custom close state code	Define how to close the mirrored tickets in Cortex XSOAR with a custom state. Enter here a comma-separated list of custom closure state codes and their labels (acceptable format example: “10=Design,11=Development,12=Testing”) to override the default closure method. Note that a matching user-defined list of custom close reasons must be configured as a "Server configuration" in Cortex XSOAR. Not following this format will result in closing the incident with a default close reason.	False
   Mirrored XSOAR Ticket custom close resolution code	Define how to close the mirrored tickets in Cortex XSOAR with a custom resolution code. Enter a comma-separated list of custom resolution codes and their labels (acceptable format example: “10=Design,11=Development,12=Testing”) to override the default closure method. Note that a matching user-defined list of custom close reasons must be configured as a "Server configuration" in Cortex XSOAR. Not following this format will result in closing the incident with a default close reason.	False
   Mirrored ServiceNow Ticket closure method	Define how to close the mirrored tickets in ServiceNow, choose 'resolved' to enable reopening from the UI. Otherwise, choose 'closed'.	False
   Mirrored ServiceNow Ticket custom close state code	Define how to close the mirrored tickets in ServiceNow with custom state. Enter here the custom closure state code (should be an integer) to override the default closure method. If the closure code does not exist, the default one will be used instead.	False
   Mirror Existing Notes For New Fetched Incidents	When enabled, comments and work notes are mirrored as note entries for each newly fetched incident. Note: This setting triggers an API call for each incident during the first mirroring, potentially causing overload if numerous incidents are present.	False
   Use system proxy settings		False
   Trust any certificate (not secure)		False
   Incidents Fetch Interval		False
   Advanced: Minutes to look back when fetching	Use this parameter to determine how long backward to look in the search for incidents that were created before the last run time and did not match the query when they were created.	False

3. Click Test to validate the URLs, token, and connection.

4. Click Done.

Fetch Incidents

The integration fetches newly created tickets according to the following parameters, which you define in the instance configuration: ticket_type, query, and limit. For the first fetch, the integration will fetch incidents that were created 10 minutes earlier. After that, the integration will fetch incidents created after the timestamp of the last fetch.

look-back parameter note: In case the look-back parameter is initialized with a certain value and during a time that incidents were fetched, if changing the look back to a number that is greater than the previous value, then in the initial incident fetching there will be incidents duplications. If the integration was already set with look back > 0, and the look-back is not being increased at any point of time, then those incident duplications would not occur. Note that using a look-back value that is very large (more than an hour) can lead to an increase in the memory usage of the system in some cases, and it is highly unrecommended. If there is a need to fetch incidents that require a long look-back to get fetched (for tracking issues, for example), use the mirroring feature and filter the results using the relevant tags instead of using the look-back feature. You can create a custom mapper and track the relevant fields.

Configure Incident Mirroring

This feature is compliant with XSOAR version 6.0 and above.
When mirroring incidents, you can make changes in ServiceNow that will be reflected in Cortex XSOAR, or vice versa. You can also attach files from either of the systems which will then be available in the other system.

The following instructions include steps for configuring the integration and incoming and outgoing mappers. However, they do not cover every option available in the integration nor classification and mapping features. For information about classification and mapping see Classification and Mapping (Cortex XSOAR 6.13) or Classification and Mapping (Cortex XSOAR 8 Cloud) or Classification and Mapping (Cortex XSOAR 8.7 On-prem).

Note:

• For Cortex XSOAR version 6.1 only, the final source of truth for an incident are the values in Cortex XSOAR. For example, if you change the severity in Cortex XSOAR and then change it back in ServiceNow, the final value that will be presented is the one in Cortex XSOAR. For versions 6.2 and later, if mirroring is in both directions then the latest update is the source of truth.
• The mirroring settings apply only for incidents that are fetched after applying the settings. Pre-existing comments or work notes are not fetched/mirrored at the time of incident creation.
• To use a custom mapper, you must first duplicate the mapper and edit the field in the copy of the mapper. If you detach the out of the box mapper and make changes to it, the pack does not automatically get updates.

To set up incident mirroring you need to:

1. Configure the ServiceNow Service Account roles.
2. Configure mirroring for ServiceNow trigger incidents or configure mirroring for other trigger incidents.

Configure the ServiceNow Service Account Roles

To use ServiceNow on Cortex XSOAR, ensure your service account has the following roles required to make API calls:

• Rest_api_explorer
• Snc_platform_rest_api_access
• itil (optional)

Note: If you choose to give permissions only for specific tables, you then need to add to your user account the specific tables you want to have access to. Make sure you have the correct role so you have permissions to work with the relevant table. Keep in mind that these permissions may not suffice for managing records in some tables.

• Read access to sys_journal_field (this is an elevated privilege) for accessing comments and work notes and for incoming mirroring. This is not required if you have Use Display Value enabled with Instance Date Format defined.

  Note:
  See this ServiceNow community link for giving elevated read access and potential risks.

Configure Incident Mirroring When the Trigger Incident is ServiceNow

When the trigger incident is ServiceNow, you use the ServiceNow Classifier and leave the Incident type as N/A, with either the default incoming and outgoing mappers or optional custom mappers.

STEP 1 - Configure the ServiceNow v2 Integration Instance for Mirroring

1. Navigate to Integrations and search for ServiceNow v2.

2. Click Add instance.

3. Select Fetches incidents.

4. Under Classifier, select ServiceNow Classifier.
   Note:
   You define either the Classifier or the Incident type (not both). It is recommended to define the Classifier and leave Incident type N/A to enable labeling custom incident types under the ServiceNow Classifier.

5. Under Mapper (incoming), for default mapping select ServiceNow - Incoming Mapper. For custom mapping, follow the instructions in STEP 2 and then select the custom mapper name.

6. Under Mapper (outgoing), for default mapping select ServiceNow - Outgoing Mapper. For custom mapping, follow the instructions in STEP 3 and then select the custom mapper name.



7. Enter the connection parameters.

   • Confirm whether your organization uses basic authorization or OAuth authorization (most use basic) and enter the relevant authorization details.
   • Leave ServiceNow API Version empty since ServiceNow typically automatically provides the appropriate version.

8. Under The query to use when fetching incidents, the default query is to filter for new incidents: stateNOT IN6,7, where 6= resolved incidents and 7= closed incidents. For a different query, ask your ServiceNow representative to provide the exact states and their numbers.

9. Select Get incident attachments to retrieve attachments from ServiceNow incident creation in Cortex XSOAR.

10. Select the Incident Mirroring Direction:

    • In - Mirrors changes on the ServiceNow ticket in to the Cortex XSOAR ticket.
    • Out - Mirrors changes on the Cortex XSOAR ticket to the ServiceNow ticket.
    • Both - Mirrors changes both in and out on both tickets.

11. Enable the checkbox for Use Display Value if you want to fetch comments and work notes without using sys_journal_field table which required an elevated read only permission.

12. If Use Display Value is enabled, Instance Date Format needs to be set to the date format that matches the date format used in ServiceNow by the user account used to configure the instance.

13. Set the Timestamp field to query as part of the mirroring flow. This defines the ticket_last_update - the epoch timestamp when the ServiceNow incident was last updated. The default is sys_updated_on.

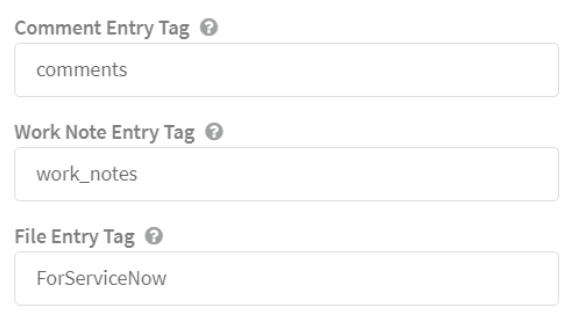

14. Enter the relevant Comment Entry Tag, Work Note Entry Tag, File Entry Tag To ServiceNow and File Entry Tag From ServiceNow values.
    These values are mapped to the dbotMirrorTags incident field in Cortex XSOAR, which defines how Cortex XSOAR handles comments when you tag them in the War Room.
    Note:
    These tags work only for mirroring comments, work notes, and files from Cortex XSOAR to ServiceNow.

15. Configure any Custom Fields to Mirror. These must start with "u_". This is available for ServiceNow v2 version 2.2.10 and later.
    Note:
    To enable mirroring custom fields, make a copy of the incoming and outgoing mappers and add the custom fields to the copies (see STEP 2 and STEP 3). Select these copies in the integration instance Mapper (incoming) and Mapper (outgoing) settings.
16. To enable mirroring when closing an incident or ticket in Cortex XSOAR and ServiceNow, select the closed option from the Mirrored XSOAR Ticket closure method dropdown and Mirrored ServiceNow Ticket closure method respectively.
17. Click Done.

STEP 2 (Optional) Configure the Incoming Mapper by Incident Type for Custom Fields

Note: Any modifications require that the mappers be cloned before any changes can be applied.

1. Navigate to Classification and Mapping and for Incidents search for the ServiceNow - Incoming Mapper.

2. Select it and click Duplicate.

3. Under the Incident Type dropdown, select ServiceNow Create Ticket and Mirror.

4. Verify the mapper has these fields mapped. They will pull the values configured on the integration instance settings at the time of ingestion.



   • dbotMirrorId - dbotMirrorId - the field used by the third-party integration to identify the ticket. This should be the sys_id of the ServiceNow ticket. The value is mapped to incident.servicenowticketid.
   • dbotMirrorDirection - determines whether mirroring is incoming, outgoing, or both. Default is Both. This should match the instance configuration.
   • dbotMirrorInstance - determines the ServiceNow instance with which to mirror. This should match the instance configuration.
   • dbotMirrorLastSync - determines the field by which to indicate the last time that the systems synchronized.
   • dbotMirrorTags - determines the tags that you need to add in Cortex XSOAR for entries to be pushed to ServiceNow. They should be copied from the tags in the instance configuration. These are also the tags that must be put on the War Room record in order for it to sync.
     • To mirror files, use the ForServiceNow tag.
     • To mirror general notes, use the comments tag.
     • To mirror private notes that can be read only by users with the necessary permissions, use the work_notes tag.
   • Configure any custom fields you want mapped to Cortex XSOAR. Custom fields start with “u_” and are available for ServiceNow v2 version 2.2.10 and later. These must be added to the integration instance Custom Fields to Mirror setting.

STEP 3 - Modify the Outgoing Mapper

Note:
Any modifications require that the mappers be cloned before any changes can be applied.

1. Navigate to Classification and Mapping, and for Incidents search for the ServiceNow - Outgoing Mapper.
2. Select it and click Duplicate.
   The left side of the screen shows the ServiceNow fields to which to map and the right side of the screen shows the Cortex XSOAR fields by which you are mapping.
3. Under the Incident Type dropdown, select the relevant incident type (for example ServiceNow Ticket).
4. Under Schema Type, select incident. The Schema Type represents the ServiceNow entity that you are mapping to. In our example it is an incident, but it can also be any other kind of ticket that ServiceNow supports.
5. On the right side of the screen, under Incident, select the incident based on which you want to match.
6. Change the mapping according to your needs, including any fields you want mapped outward to ServiceNow and any custom fields. Make sure the custom fields you want mirrored are added to the integration instance settings.
7. Save your changes.

STEP 4 - Create an Incident in ServiceNow

For purposes of this use case, it can be a simple incident. The new ticket will be ingested in Cortex XSOAR in approximately one minute.

STEP 5 - Add a Note to the Incident in Cortex XSOAR

In the example below, we have written A comment from Cortex XSOAR to ServiceNow.

1. Click Actions > Tags and add the comments tag.
2. Add a file to the incident and mark it with the ForServiceNow tag.

3. Navigate back to the incident in ServiceNow and within approximately one minute, the changes will be reflected there, too.
   You can make additional changes like closing the incident or changing severity and those will be reflected in both systems.

Configure Incident Mirroring When the Trigger Incident is Not ServiceNow

You can set up any source integration to create a ServiceNow ticket based on a fetched incident and mirror the ticket in Cortex XSOAR. To do this you need to:

• Configure the ServiceNow v2 integration to map the appropriate fields from the ServiceNow Create Ticket and Mirror incident type to the relevant trigger incident type (for example, Phishing Custom).
• Set up the source integration to create a ServiceNow ticket and start mirroring.

STEP 1 - Configure the ServiceNow v2 Integration Instance for Mirroring

1. Navigate to Classification and Mapping. For Incidents, search for ServiceNow - Incoming Mapper and ServiceNow - Outgoing Mapper.

2. For each mapper, click Duplicate.
   Your copied mappers will be called ServiceNow - Incoming Mapper_copy and ServiceNow - Outgoing Mapper_copy, you can rename them. The copied mappers appear in the drop down for the Mapper (incoming) and Mapper (outgoing) integration instance settings fields.

3. Navigate to Integrations and search for ServiceNow v2.

4. Click Add instance.

5. Select Do not Fetch.

6. Under Classifier, select ServiceNow Classifier.
   Note:
   You define either the Classifier or the Incident type (not both). It is recommended to define the Classifier and leave Incident type N/A to enable labeling custom incident types under the ServiceNow Classifier.

7. Under Mapper (incoming), select ServiceNow - Incoming Mapper_copy (or whatever you renamed it).

8. Under Mapper (outgoing), select ServiceNow - Outgoing Mapper_copy (or whatever you renamed it).

9. Enter the connection parameters.

   • Confirm whether your organization uses basic authorization or OAuth authorization (most use basic) and enter the relevant authorization details.
   • Leave ServiceNow API Version empty since ServiceNow typically automatically provides the appropriate version.

10. Under The query to use when fetching incidents, the default query is to filter for new incidents: stateNOT IN6,7, where 6= resolved incidents and 7= closed incidents. For a different query, ask your ServiceNow representative to provide the exact states and their numbers.

11. Select Get incident attachments to retrieve attachments from ServiceNow incident creation in Cortex XSOAR.

12. Select the Incident Mirroring Direction:

    • In - Mirrors changes on the ServiceNow ticket in to the Cortex XSOAR ticket.
    • Out - Mirrors changes on the Cortex XSOAR ticket to the ServiceNow ticket.
    • Both - Mirrors changes both in and out on both tickets.

13. Enable the checkbox for Use Display Value if you want to fetch comments and work notes without using sys_journal_field table which required an elevated read only permission.

14. If Use Display Value is enabled, Instance Date Format needs to be set to the date format that matches the date format used in ServiceNow by the user account used to configure the instance.

15. Set the Timestamp field to query as part of the mirroring flow. This defines the ticket_last_update - the epoch timestamp when the ServiceNow incident was last updated. The default is sys_updated_on.
16. Enter the relevant Comment Entry Tag, Work Note Entry Tag, File Entry Tag To ServiceNow and File Entry Tag From ServiceNow values. These values are mapped to the dbotMirrorTags incident field in Cortex XSOAR, which defines how Cortex XSOAR handles comments when you tag them in the War Room.
    Note:
    These tags work only for mirroring comments from Cortex XSOAR to ServiceNow.

17. Configure any Custom Fields to Mirror. These must start with "u_". This is available for ServiceNow v2 version 2.2.10 and later.
    Note:
    To enable mirroring custom fields, make a copy of the incoming and outgoing mappers and add the custom fields to the copies (see STEP 2 and STEP 3). Select these copies in the integration instance Mapper (incoming) and Mapper (outgoing) settings.
18. To enable mirroring when closing an incident or ticket in Cortex XSOAR and ServiceNow, select the closed option from the Mirrored XSOAR Ticket closure method dropdown and Mirrored ServiceNow Ticket closure method respectively.
19. Click Done.

STEP 2 (Optional) Configure the Incoming Mapper by Incident Type for Custom Fields

Note: Any modifications require that the mappers be cloned before any changes can be applied.

1. Navigate to Classification and Mapping and for Incidents search for the ServiceNow - Incoming Mapper_copy (or whatever you renamed it).

2. Under the Incident Type dropdown, select the relevant triggering incident type, for example Phishing.

3. Verify the mapper has these fields mapped. They will pull the values configured on the integration instance settings at the time of ingestion.



   • dbotMirrorId - dbotMirrorId - the field used by the third-party integration to identify the ticket. This should be the sys_id of the ServiceNow ticket. The value is mapped to incident.servicenowticketid.
   • dbotMirrorDirection - determines whether mirroring is incoming, outgoing, or both. Default is Both. This should match the instance configuration.
   • dbotMirrorInstance - determines the ServiceNow instance with which to mirror. This should match the instance configuration.
   • dbotMirrorLastSync - determines the field by which to indicate the last time that the systems synchronized.
   • dbotMirrorTags - determines the tags that you need to add in Cortex XSOAR for entries to be pushed to ServiceNow. They should be copied from the tags in the instance configuration. These are also the tags that must be put on the War Room record in order for it to sync.
     • To mirror files from XSOAR to ServiceNow, use the ForServiceNow tag.
     • Mirrored files from ServiceNow to XSOAR will be tagged by default with the FromServiceNow tag.
     • To mirror general notes, use the comments tag.
     • To mirror private notes that can be read only by users with the necessary permissions, use the work_notes tag.
   • Configure any custom fields you want mapped to Cortex XSOAR. Custom fields start with “u_” and are available for ServiceNow v2 version 2.2.10 and later. These must be added to the integration instance Custom Fields to Mirror setting.

4. Save your changes.

STEP 3 - Modify the Outgoing Mapper for Custom Fields

Note:
Any modifications require that the mappers be cloned before any changes can be applied.

1. Navigate to Classification and Mapping, and for Incidents search for the ServiceNow - Outgoing Mapper_copy (or whatever you renamed it).
2. Under the Incident Type dropdown, select the relevant incident type (for example ServiceNow Ticket).
3. Under Schema Type, select incident. The Schema Type represents the ServiceNow entity that you are mapping to. In our example it is an incident, but it can also be any other kind of ticket that ServiceNow supports.
4. On the right side of the screen, under Incident, select the incident based on which you want to match.
   The left side of the screen shows the ServiceNow fields to which to map and the right side of the screen shows the Cortex XSOAR fields by which you are mapping.
5. Change the mapping according to your needs, including any fields you want mapped outward to ServiceNow and any custom fields. Make sure the custom fields you want mirrored are added to the integration instance settings.
6. Save your changes.

STEP 4 - Set up Your Source Integration

Set up your source integration so that after fetching a trigger incident a ServiceNow ticket is created and mirroring starts.

1. Fetch an incident with your chosen integration. For example, for Phishing using any email integration (Gmail, MSGraph, O365).
2. Classify and map the incident fields.
3. Create a task in the playbook that creates a ServiceNow ticket followed by a set incident task that starts the mirroring capability.

Example: The following shows the Create New Record playbook task, which creates a ServiceNow ticket.

The Create New Record task is followed by the Set Mirroring Fields task, which starts the mirroring capability.

The new ServiceNow ticket will be ingested in Cortex XSOAR in approximately one minute.

STEP 5 - Add a Note to the Incident in Cortex XSOAR

In the example below, we have written A comment from Cortex XSOAR to ServiceNow.

1. Click Actions > Tags and add the comments tag.
2. Add a file to the incident and mark it with the ForServiceNow tag.

3. Navigate back to the incident in ServiceNow and within approximately one minute, the changes will be reflected there, too.
   You can make additional changes like closing the incident or changing severity and those will be reflected in both systems.

Commands

You can execute these commands from the Cortex XSOAR CLI, as part of an automation, or in a playbook. After you successfully execute a command, a DBot message appears in the War Room with the command details.

All commands implement a retry mechanism for 401 (Unauthorized) error codes due to potential ServiceNow authorization issues. This mechanism attempts the request multiple times. If the issue persists, it likely indicates an authorization configuration problem.

servicenow-login

---

This function should be used once before running any command when using OAuth authentication.

Base Command

servicenow-login

Input

Argument Name	Description	Required
username	The username that should be used for login.	Required
password	The password that should be used for login.	Required

Context Output

There is no context output for this command.

Command Example

!servicenow-login username=username password=password

Context Example

{}

Human Readable Output

Logged in successfully

servicenow-test

---

Test the instance configuration when using OAuth authorization.

Base Command

servicenow-test

Input

There are no input arguments for this command.

Context Output

There is no context output for this command.

Command Example

!servicenow-test

Context Example

{}

Human Readable Output

Instance Configured Successfully

servicenow-get-ticket

---

Retrieves ticket information by ticket ID.

Base Command

servicenow-get-ticket

Input

Argument Name	Description	Required
id	Ticket system ID for which to retrieve information.	Optional
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional
number	Ticket number to retrieve.	Optional
get_attachments	If "true" will retrieve ticket attachments.Note this option will always use the v1 API version, as it is not supported in v2. Default is "false".	Optional
custom_fields	Custom fields on which to query. For example: state_code=AR,time_zone=PST.	Optional
additional_fields	Additional fields to display in the War Room entry and incident context.	Optional

Context Output

Path	Type	Description
ServiceNow.Ticket.ID	string	ServiceNow ticket ID.
ServiceNow.Ticket.OpenedBy	string	ServiceNow ticket opener ID.
ServiceNow.Ticket.CreatedOn	date	ServiceNow ticket creation date.
ServiceNow.Ticket.Assignee	string	ServiceNow ticket assignee ID.
ServiceNow.Ticket.State	string	ServiceNow ticket state.
ServiceNow.Ticket.Summary	string	ServiceNow ticket short summary.
ServiceNow.Ticket.Number	string	ServiceNow ticket number.
ServiceNow.Ticket.Active	boolean	ServiceNow ticket active.
ServiceNow.Ticket.AdditionalComments	string	ServiceNow ticket comments.
ServiceNow.Ticket.Priority	string	ServiceNow ticket priority.
ServiceNow.Ticket.OpenedAt	date	ServiceNow ticket opening time.
ServiceNow.Ticket.ResolvedBy	string	ServiceNow ticket resolver ID.
ServiceNow.Ticket.CloseCode	string	ServiceNow ticket close code.
File.Info	string	Attachment file info.
File.Name	string	Attachment file name.
File.Size	number	Attachment file size.
File.SHA1	string	Attachment file SHA1 hash.
File.SHA256	string	Attachment file SHA256 hash.
File.EntryID	string	Attachment file entry ID.
File.Type	string	Attachment file type.
File.MD5	string	Attachment file MD5 hash.

Command Example

!servicenow-get-ticket number=INC0000040

Context Example

{

"ServiceNow": {

"Ticket": {

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2020-01-26 00:43:54",

"Creator": "admin",

"ID": "id",

"Number": "INC0000040",

"OpenedAt": "2020-01-26 00:42:45",

"OpenedBy": "admin",

"Priority": "3 - Moderate",

"State": "3",

"Summary": "JavaScript error on hiring page of corporate website"

}

},

"Ticket": {

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2020-01-26 00:43:54",

"Creator": "admin",

"ID": "id",

"Number": "INC0000040",

"OpenedAt": "2020-01-26 00:42:45",

"OpenedBy": "admin",

"Priority": "3 - Moderate",

"State": "3",

"Summary": "JavaScript error on hiring page of corporate website"

}

}

Human Readable Output

ServiceNow ticket

System ID	Number	Impact	Urgency	Severity	Priority	State	Created On	Created By	Active	Description	Opened At	Short Description
id	INC0000040	2 - Medium	2 - Medium	3 - Low	3 - Moderate	3 - On Hold	2020-01-26 00:43:54	admin	true	Seeing JavaScript error message on hiring page on Explorer and Firefox.	2020-01-26 00:42:45	JavaScript error on hiring page of corporate website

servicenow-create-ticket

---

Creates new ServiceNow ticket.

Base Command

servicenow-create-ticket

Input

Argument Name	Description	Required
short_description	Short description of the ticket.	Optional
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", "sn_si_incident" or "std_change_template". Default is "incident".	Optional
urgency	Ticket urgency. You can either select from the predefined options or enter another value, for example: "Urgent" or "5".	Optional
severity	Ticket severity. You can either select from the predefined options or enter another value, for example: "Urgent" or "5".	Optional
impact	Ticket impact.	Optional
active	Whether to set the ticket as Active. Can be "true" or "false".	Optional
activity_due	The ticket activity due date, in the format "2016-07-02 21:51:11".	Optional
additional_assignee_list	List of users assigned to the ticket.	Optional
approval_history	Ticket history approval.	Optional
approval_set	The ticket approval set date, in the format "2016-07-02 21:51:11".	Optional
assigned_to	User assigned to the ticket.	Optional
business_duration	Business duration, in the format: YYYY-MM-DD HH:MM:SS.	Optional
business_service	Business service.	Optional
business_stc	Business source.	Optional
business_criticality	Business criticality of the ticket.	Optional
calendar_duration	Calendar duration, in the format: YYYY-MM-DD HH:MM:SS.	Optional
caller_id	Caller ID (UID format).	Optional
category	Category of the ticket.	Optional
caused_by	UID Format	Optional
close_code	Ticket's close code. Can be "Solved (Work Around)", "Solved (Permanently)", "Solved Remotely (Work Around)", "Solved Remotely (Permanently)", "Not Solved (Not Reproducible)", "Not Solved (Too Costly)", or "Closed/Resolved by Caller".	Optional
close_notes	Close notes of the ticket.	Optional
closed_at	When the ticket was closed, in the format: YYYY-MM-DD HH:MM:SS.	Optional
closed_by	User who closed the ticket.	Optional
cmdb_ci	UID Format.	Optional
comments	Format type journal input.	Optional
comments_and_work_notes	Format type journal input.	Optional
company	Company (UID format).	Optional
contact_type	Contact type.	Optional
correlation_display	Correlation display.	Optional
correlation_id	Correlation ID.	Optional
delivery_plan	Delivery plan (UID format).	Optional
display	Whether to display comments, work notes, and so on. Can be "true" or "false".	Optional
description	Ticket description.	Optional
due_date	Ticket due date, in the format: YYYY-MM-DD HH:MM:SS.	Optional
escalation	Escalation	Optional
expected_start	Expected start date/time, in the format: YYYY-MM-DD HH:MM:SS.	Optional
follow_up	Follow up date/time, in the format: YYYY-MM-DD HH:MM:SS.	Optional
group_list	UID format list (group).	Optional
knowledge	Whether the ticket is solved in the knowledge base. Can be "true" or "false".	Optional
location	Location of the ticket.	Optional
made_sla	SLA of the ticket.	Optional
notify	Whether to be notified about this ticket. Can be "1" or "0".	Optional
order	Order number.	Optional
parent	UID Format	Optional
parent_incident	UID Format	Optional
problem_id	UID Format	Optional
reassignment_count	The number of users included in this ticket.	Optional
reopen_count	How many times the ticket has been reopened.	Optional
resolved_at	The date/time that the ticket was resolved, in the format: YYYY-MM-DD HH:MM:SS.	Optional
resolved_by	ID of the user that resolved the ticket.	Optional
risk_score	Incident risk score.	Optional
rfc	UID	Optional
sla_due	SLA due date/time, in the format: YYYY-MM-DD HH:MM:SS.	Optional
subcategory	Ticket subcategory.	Optional
sys_updated_by	Last updated by.	Optional
sys_updated_on	Last date/time that the system was updated, in the format: YYYY-MM-DD HH:MM:SS.	Optional
user_input	Input from the end user.	Optional
watch_list	A list of watched tickets.	Optional
work_end	Format: YYYY-MM-DD HH:MM:SS	Optional
work_notes	Format journal list	Optional
work_notes_list	List work notes UIDs.	Optional
work_start	Date/time when work started on the ticket.	Optional
assignment_group	The sys_id of the group to assign.	Optional
incident_state	The number that represents the incident state.	Optional
number	Ticket number.	Optional
priority	Priority of the ticket.	Optional
template	Template name to use as a base to create new tickets.	Optional
custom_fields	Custom (user defined) fields in the format: fieldname1=value;fieldname2=value; custom fields start with a "u_".	Optional
change_type	Type of Change Request ticket. Can be "normal", "standard", or "emergency". Default is "normal".	Optional
state	State of the ticket, for example: "Closed" or "7" or "7 - Closed".	Optional
opened_at	Date/time the ticket was opened, in the format: YYYY-MM-DD HH:MM:SS.	Optional
caller	Caller system ID.	Optional
approval	Ticket approval.	Optional
additional_fields	Additional fields in the format: fieldname1=value;fieldname2=value;	Optional
input_display_value	Flag that indicates whether to set field values using the display value or the actual value. True will treat the input value as the display value. False treats the input values as actual values. The default setting is false.	Optional

For more information regarding the input_display_value argument, see: https://docs.servicenow.com/bundle/xanadu-platform-administration/page/administer/exporting-data/concept/query-parameters-display-value.html

Context Output

Path	Type	Description
ServiceNow.Ticket.ID	string	ServiceNow ticket ID.
ServiceNow.Ticket.OpenedBy	string	ServiceNow ticket opener ID.
ServiceNow.Ticket.CreatedOn	date	ServiceNow ticket creation date.
ServiceNow.Ticket.Assignee	string	ServiceNow ticket assignee ID.
ServiceNow.Ticket.State	string	ServiceNow ticket state.
ServiceNow.Ticket.Summary	string	ServiceNow ticket short summary.
ServiceNow.Ticket.Number	string	ServiceNow ticket number.
ServiceNow.Ticket.Active	boolean	ServiceNow ticket active.
ServiceNow.Ticket.AdditionalComments	string	ServiceNow ticket comments.
ServiceNow.Ticket.Priority	string	ServiceNow ticket priority.
ServiceNow.Ticket.OpenedAt	date	ServiceNow ticket opening time.
ServiceNow.Ticket.ResolvedBy	string	ServiceNow ticket resolver ID.
ServiceNow.Ticket.CloseCode	string	ServiceNow ticket close code.

Command Example

!servicenow-create-ticket active=true severity="2 - Medium" short_description="Ticket example"

Context Example

{

"ServiceNow": {

"Ticket": {

"Active": "true",

"CreatedOn": "2020-05-10 09:04:06",

"Creator": "admin",

"ID": "id",

"Number": "INC0010002",

"OpenedAt": "2020-05-10 09:04:06",

"OpenedBy": "admin",

"Priority": "5 - Planning",

"State": "1",

"Summary": "Ticket exmaple"

}

},

"Ticket": {

"Active": "true",

"CreatedOn": "2020-05-10 09:04:06",

"Creator": "admin",

"ID": "id",

"Number": "INC0010002",

"OpenedAt": "2020-05-10 09:04:06",

"OpenedBy": "admin",

"Priority": "5 - Planning",

"State": "1",

"Summary": "Ticket example"

}

}

Human Readable Output

ServiceNow ticket was created successfully

System ID	Number	Impact	Urgency	Severity	Priority	State	Created On	Created By	Active	Opened At	Short Description
id	INC0010002	3 - Low	3 - Low	2 - Medium	5 - Planning	1 - New	2020-05-10 09:04:06	admin	true	2020-05-10 09:04:06	Ticket example

servicenow-update-ticket

---

Updates the specified ticket.

Base Command

servicenow-update-ticket

Input

Argument Name	Description	Required
short_description	Short description of the ticket.	Optional
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional
urgency	Ticket urgency. You can either select from the predefined options or enter another value, for example: "Urgent" or "5".	Optional
severity	Ticket severity. You can either select from the predefined options or enter another value, for example: "Urgent" or "5".	Optional
impact	Ticket impact.	Optional
active	Whether the ticket is Active. Can be "true" or "false".	Optional
activity_due	The ticket activity due date, in the format: "2016-07-02 21:51:11".	Optional
additional_assignee_list	List of users assigned to the ticket.	Optional
approval_history	Ticket history approval.	Optional
approval_set	The ticket approval set date/time, in the format: "2016-07-02 21:51:11".	Optional
assigned_to	User assigned to the ticket.	Optional
business_duration	Business duration, in the format: YYYY-MM-DD HH:MM:SS.	Optional
business_service	Business service.	Optional
business_stc	Business source.	Optional
business_criticality	Business criticality of the ticket.	Optional
calendar_duration	Calendar duration, in the format: YYYY-MM-DD HH:MM:SS.	Optional
caller_id	Caller ID (UID format).	Optional
category	Category name.	Optional
caused_by	UID format.	Optional
close_code	Ticket's close code. Ticket's close code. Can be "Solved (Work Around)", "Solved (Permanently)", "Solved Remotely (Work Around)", "Solved Remotely (Permanently)", "Not Solved (Not Reproducible)", "Not Solved (Too Costly)", or "Closed/Resolved by Caller".	Optional
close_notes	Close notes of the ticket.	Optional
closed_at	Date/time the ticket was closed, in the format: YYYY-MM-DD HH:MM:SS.	Optional
closed_by	User who closed the ticket.	Optional
cmdb_ci	UID Format.	Optional
comments	Format type journal input.	Optional
comments_and_work_notes	Format type journal input.	Optional
company	UID Format.	Optional
contact_type	Contact type.	Optional
correlation_display	Correlation display.	Optional
correlation_id	Correlation ID.	Optional
delivery_plan	UID Format.	Optional
display	Whether to display comments, work notes, and so on. Can be "true" or "false".	Optional
description	Ticket description.	Optional
due_date	Ticket due date, in the format: YYYY-MM-DD HH:MM:SS.	Optional
escalation	Escalation.	Optional
expected_start	Expected start date/time, in the format: YYYY-MM-DD HH:MM:SS.	Optional
follow_up	Follow up date/time, in the format: YYYY-MM-DD HH:MM:SS.	Optional
group_list	UID format list.	Optional
knowledge	Whether the ticket is solved in the knowledge base. Can be "true" or "false".	Optional
location	Location of the ticket.	Optional
made_sla	SLA of the ticket.	Optional
notify	Whether to be notified about this ticket. Can be "1" or "0".	Optional
order	Order number.	Optional
parent	Parent (UID format).	Optional
parent_incident	Parent incident (UID format).	Optional
problem_id	Problem ID (UID format).	Optional
reassignment_count	The number of users included in this ticket.	Optional
reopen_count	The number of times the ticket has been reopened.	Optional
resolved_at	Date/time the ticket was resolved, in the format: YYYY-MM-DD HH:MM:SS.	Optional
resolved_by	Resolved by (UID format).	Optional
risk_score	Incident risk score.	Optional
rfc	UID	Optional
sla_due	SLA due date/time, in the format: YYYY-MM-DD HH:MM:SS.	Optional
subcategory	Ticket subcategory.	Optional
sys_updated_by	Last updated by	Optional
sys_updated_on	Date/time the system was last updated.	Optional
user_input	Input from the end user.	Optional
watch_list	A list of watched tickets.	Optional
work_end	Format: YYYY-MM-DD HH:MM:SS	Optional
work_notes	Format journal list.	Optional
work_notes_list	Comma-separated list of work notes UIDs.	Optional
work_start	Date/time when work started on the ticket.	Optional
assignment_group	Assignment group UID.	Optional
incident_state	Number representing the incident state.	Optional
number	Ticket number.	Optional
priority	Priority of the ticket.	Optional
id	System ID of the ticket to update.	Required
custom_fields	Custom (user defined) fields in the format: fieldname1=value;fieldname2=value; custom fields start with a "u_".	Optional
change_type	Type of Change Request ticket. Can be "normal", "standard", or "emergency". Default is "normal".	Optional
state	State of the ticket, for example: "Closed" or "7" or "7 - Closed".	Optional
caller	Caller system ID.	Optional
approval	Ticket approval.	Optional
additional_fields	Additional fields in the format: fieldname1=value;fieldname2=value;	Optional
input_display_value	Flag that indicates whether to set field values using the display value or the actual value. True will treat the input value as the display value. False treats the input values as actual values. The default setting is false.	Optional
clear_fields	A comma-separated list of fields to clear.	Optional

For more information regarding the input_display_value argument, see: https://docs.servicenow.com/bundle/xanadu-platform-administration/page/administer/exporting-data/concept/query-parameters-display-value.html

Context Output

There is no context output for this command.

Command Example

!servicenow-update-ticket id=id severity="2 - Medium"

Context Example

{

"ServiceNow": {

"Ticket": {

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2020-01-26 00:43:54",

"Creator": "admin",

"ID": "id",

"Number": "INC0000040",

"OpenedAt": "2020-01-26 00:42:45",

"OpenedBy": "admin",

"Priority": "3 - Moderate",

"State": "3",

"Summary": "JavaScript error on hiring page of corporate website"

}

}

}

Human Readable Output

ServiceNow ticket updated successfully

Ticket type: incident

Active	Created By	Created On	Description	Impact	Number	Opened At	Priority	Severity	Short Description	State	System ID	Urgency
true	admin	2020-01-26 00:43:54	Seeing JavaScript error message on hiring page on Explorer and Firefox.	2 - Medium	INC0000040	2020-01-26 00:42:45	3 - Moderate	2 - Medium	JavaScript error on hiring page of corporate website	3 - On Hold	471d4732a9fe198100affbf655e59172	2 - Medium

servicenow-delete-ticket

---

Deletes a ticket from ServiceNow.

Base Command

servicenow-delete-ticket

Input

Argument Name	Description	Required
id	Ticket System ID	Required
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident".	Optional

Context Output

There is no context output for this command.

Command Example

!servicenow-delete-ticket id=id

Context Example

{}

Human Readable Output

Ticket with ID id was successfully deleted.

servicenow-query-tickets

---

Retrieves ticket information according to the supplied query.

Base Command

servicenow-query-tickets

Input

Argument Name	Description	Required
limit	The maximum number of tickets to retrieve.	Optional
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional
query	The query to run. To learn about querying in ServiceNow, see https://docs.servicenow.com/bundle/istanbul-servicenow-platform/page/use/common-ui-elements/reference/r_OpAvailableFiltersQueries.html	Optional
offset	Starting record index to begin retrieving records from.	Optional
additional_fields	Additional fields to present in the War Room entry and incident context.	Optional
system_params	System parameters in the format: fieldname1=value;fieldname2=value. For example: "sysparm_display_value=al;&sysparm_exclude_reference_link=True"	Optional
system_params	System parameters in the format: fieldname1=value;fieldname2=value. For example: "sysparm_display_value=true;sysparm_exclude_reference_link=True"	Optional

Context Output

Path	Type	Description
Ticket.ID	string	The unique ticket identifier.
Ticket.Creator	string	A string field that indicates the user who created the ticket.
Ticket.CreatedOn	date	The date/time when the ticket was created.
Ticket.Assignee	string	Specifies the user assigned to complete the ticket. By default, this field uses a reference qualifier to only display users with the itil role.
Ticket.State	string	Status of the ticket.
Ticket.Summary	string	A human-readable title for the record.
Ticket.Number	string	The display value of the ticket.
Ticket.Active	boolean	Specifies whether work is still being done on a task or whether the work for the task is complete.
Ticket.AdditionalComments	Unknown	Comments about the task record.
Ticket.Priority	string	Specifies the ticket priority for the assignee.
Ticket.OpenedAt	date	The date/time when the ticket was first opened.
Ticket.Escalation	string	Indicates how long the ticket has been open.

Command Example

!servicenow-query-tickets limit="3" query="impact<2^short_descriptionISNOTEMPTY" ticket_type="incident"

Context Example

{

"ServiceNow": {

"Ticket": [

{

"Active": "false",

"Assignee": "admin",

"CloseCode": "Closed/Resolved by Caller",

"CreatedOn": "2018-08-24 18:24:13",

"Creator": "admin",

"ID": "id",

"Number": "INC0000001",

"OpenedAt": "2020-01-23 23:09:51",

"OpenedBy": "admin",

"Priority": "1 - Critical",

"ResolvedBy": "admin",

"State": "7",

"Summary": "Can't read email"

},

{

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2018-08-13 22:30:06",

"Creator": "admin",

"ID": "id",

"Number": "INC0000002",

"OpenedAt": "2020-01-17 23:07:12",

"OpenedBy": "admin",

"Priority": "1 - Critical",

"State": "3",

"Summary": "Network file shares access issue"

},

{

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2018-08-28 14:41:46",

"Creator": "admin",

"ID": "id",

"Number": "INC0000003",

"OpenedAt": "2020-01-24 23:07:30",

"OpenedBy": "admin",

"Priority": "1 - Critical",

"State": "2",

"Summary": "Wireless access is down in my area"

}

]

},

"Ticket": [

{

"Active": "false",

"Assignee": "admin",

"CloseCode": "Closed/Resolved by Caller",

"CreatedOn": "2018-08-24 18:24:13",

"Creator": "admin",

"ID": "id",

"Number": "INC0000001",

"OpenedAt": "2020-01-23 23:09:51",

"OpenedBy": "admin",

"Priority": "1 - Critical",

"ResolvedBy": "admin",

"State": "7",

"Summary": "Can't read email"

},

{

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2018-08-13 22:30:06",

"Creator": "admin",

"ID": "id",

"Number": "INC0000002",

"OpenedAt": "2020-01-17 23:07:12",

"OpenedBy": "admin",

"Priority": "1 - Critical",

"State": "3",

"Summary": "Network file shares access issue"

},

{

"Active": "true",

"Assignee": "admin",

"CreatedOn": "2018-08-28 14:41:46",

"Creator": "admin",

"ID": "id",

"Number": "INC0000003",

"OpenedAt": "2020-01-24 23:07:30",

"OpenedBy": "admin",

"Priority": "1 - Critical",

"State": "2",

"Summary": "Wireless access is down in my area"

}

]

}

Human Readable Output

ServiceNow tickets

System ID	Number	Impact	Urgency	Severity	Priority	State	Created On	Created By	Active	Close Notes	Close Code	Description	Opened At	Resolved By	Resolved At	Short Description
id	INC0000001	1 - High	1 - High	1 - High	1 - Critical	7 - Closed	2018-08-24 18:24:13	pat	false	Closed before close notes were made mandatory	Closed/Resolved by Caller	User can't access email on mail.company.com.	2020-01-23 23:09:51	admin	2020-04-24 19:56:12	Can't read email
id	INC0000002	1 - High	1 - High	1 - High	1 - Critical	3 - On Hold	2018-08-13 22:30:06	pat	true			User can't get to any of his files on the file server.	2020-01-17 23:07:12			Network file shares access issue
id	INC0000003	1 - High	1 - High	1 - High	1 - Critical	2 - In Progress	2018-08-28 14:41:46	admin	true			I just moved from floor 2 to floor 3 and my laptop cannot connect to any wireless network.	2020-01-24 23:07:30			Wireless access is down in my area

servicenow-add-link

---

Adds a link to the specified ticket.

Base Command

servicenow-add-link

Input

Argument Name	Description	Required
id	Ticket System ID.	Required
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional
link	The actual link to publish in ServiceNow ticket, in a valid URL format, for example, http://www.demisto.com.	Required
post-as-comment	Whether to publish the link as comment on the ticket. Can be "true" or "false". If false will publish the link as WorkNote.	Optional
text	The text to represent the link.	Optional

Context Output

There is no context output for this command.

Command Example

!servicenow-add-link id=id link="http://www.demisto.com" text=demsito_link

Context Example

{}

Human Readable Output

Link successfully added to ServiceNow ticket

System ID	Number	Impact	Urgency	Severity	Priority	State	Created On	Created By	Active	Description	Opened At	Short Description
id	INC0000040	2 - Medium	2 - Medium	2 - Medium	3 - Moderate	3 - On Hold	2020-01-26 00:43:54	admin	true	Seeing JavaScript error message on hiring page on Explorer and Firefox.	2020-01-26 00:42:45	JavaScript error on hiring page of corporate website

servicenow-add-comment

---

Adds a comment to the specified ticket, by ticket ID.

Base Command

servicenow-add-comment

Input

Argument Name	Description	Required
id	Ticket System ID.	Required
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional
comment	Comment to add.	Required
post-as-comment	Whether to publish the note as comment on the ticket. Can be "true" or "false". Default is "false".	Optional

Context Output

There is no context output for this command.

Command Example

!servicenow-add-comment id=id comment="Nice work!"

Context Example

{}

Human Readable Output

Comment successfully added to ServiceNow ticket

System ID	Number	Impact	Urgency	Severity	Priority	State	Created On	Created By	Active	Description	Opened At	Short Description
id	INC0000040	2 - Medium	2 - Medium	2 - Medium	3 - Moderate	3 - On Hold	2020-01-26 00:43:54	admin	true	Seeing JavaScript error message on hiring page on Explorer and Firefox.	2020-01-26 00:42:45	JavaScript error on hiring page of corporate website

servicenow-upload-file

---

Uploads a file to the specified ticket.

Base Command

servicenow-upload-file

Input

Argument Name	Description	Required
id	Ticket System ID.	Required
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional
file_id	War Room entry ID that includes the file.	Required
file_name	Filename of the uploaded file to override the existing file name in the entry.	Optional

Context Output

Path	Type	Description
ServiceNow.Ticket.File.Filename	string	Name of the file.
ServiceNow.Ticket.File.Link	string	Download link for the file.
ServiceNow.Ticket.File.SystemID	string	System ID of the file.

Command Example

!servicenow-upload-file id="{TicketID}" ticket_type="incident" file_id="123@456"

Context Example

{

"ServiceNow": {

"Ticket": {

"File": {

"Filename": "test.txt",

"Link": "https://{ServerURL}/api/now/attachment/{SystemID}/file",

"SystemID": "{SystemID}"

},

"ID": "{TicketID}"

}

},

"Ticket": {

"File": {

"Filename": "test.txt",

"Link": "https://{TicketID}/api/now/attachment/{SystemID}/file",

"SystemID": "{SystemID}"

},

"ID": "{TicketID}"

}

}

Human Readable Output

File uploaded successfully to ticket {TICKET ID}

Download link	Filename	System ID
https://{ServerURL}/api/now/attachment/{SystemID}/file	test.txt	{SystemID}

servicenow-delete-file

---

Delete an attachment from a ticket.

Base Command

servicenow-delete-file

Input

Argument Name	Description	Required
file_sys_id	Attachment File ID.	Required

Context Output

There is no context output for this command.

Command example

!servicenow-delete-file file_sys_id=1234

Human Readable Output

Attachment with Sys ID 1234 was successfully deleted.

servicenow-get-record

---

Retrieves record information, by record ID.

Base Command

servicenow-get-record

Input

Argument Name	Description	Required
id	Record System ID.	Required
fields	Comma-separated list of table fields to display and output to the context, for example: name,tag,company. ID field is added by default.	Optional
table_name	The name of the table from which to get the record.	Required

Context Output

Path	Type	Description
ServiceNow.Record.ID	string	The unique record identifier for the record.
ServiceNow.Record.UpdatedBy	string	A string field that indicates the user who most recently updated the record.
ServiceNow.Record.UpdatedAt	date	A time-stamp field that indicates the date and time of the most recent update.
ServiceNow.Record.CreatedBy	string	A string field that indicates the user who created the record.
ServiceNow.Record.CreatedOn	date	A time-stamp field that indicates when a record was created.

Command Example

!servicenow-get-record table_name=alm_asset id=id fields=asset_tag,sys_updated_by,display_name

Context Example

{

"ServiceNow": {

"Record": {

"ID": "id",

"asset_tag": "P1000807",

"display_name": "P1000807 - Apple MacBook Pro 17\"",

"sys_updated_by": "system"

}

}

}

Human Readable Output

ServiceNow record

ID	asset_tag	display_name	sys_updated_by
id	P1000807	P1000807 - Apple MacBook Pro 17"	system

servicenow-query-table

---

Queries the specified table in ServiceNow.

Base Command

servicenow-query-table

Input

Argument Name	Description	Required
table_name	The name of the table to query	Required
limit	The maximum number of tickets to retrieve.	Optional
query	The query to run. For more information about querying in ServiceNow, see https://docs.servicenow.com/bundle/istanbul-servicenow-platform/page/use/common-ui-elements/reference/r_OpAvailableFiltersQueries.html	Optional
fields	Comma-separated list of table fields to display and output to the context, for example: name,tag,company. ID field is added by default.	Optional
offset	Starting record index to begin retrieving records from.	Optional
system_params	System parameters in the format: fieldname1=value;fieldname2=value. For example: "sysparm_display_value=true;sysparm_exclude_reference_link=True"	Optional

Context Output

Path	Type	Description
ServiceNow.Record.ID	string	The unique record identifier for the record.
ServiceNow.Record.UpdatedBy	string	A string field that indicates the user who most recently updated the record.
ServiceNow.Record.UpdatedAt	date	A time-stamp field that indicates the date and time of the most recent update.
ServiceNow.Record.CreatedBy	string	A string field that indicates the user who created the record.
ServiceNow.Record.CreatedOn	date	A time-stamp field that indicates when a record was created.

Command Example

!servicenow-query-table table_name=alm_asset fields=asset_tag,sys_updated_by,display_name query=display_nameCONTAINSMacBook limit=4 !servicenow-query-table table_name=sys_journal_field query=element_id=<SYS_ID>^ORDERBYsys_created_on limit=10 fields=value,name,element,sys_created_by,sys_created_on

Context Example

{

"ServiceNow": {

"Record": [

{

"ID": "id",

"asset_tag": "P1000637",

"display_name": "P1000637 - Apple MacBook Air 13\"",

"sys_updated_by": "system"

},

{

"ID": "id",

"asset_tag": "P1000412",

"display_name": "P1000412 - Apple MacBook Pro 17\"",

"sys_updated_by": "system"

},

{

"ID": "id",

"asset_tag": "P1000563",

"display_name": "P1000563 - Apple MacBook Pro 15\"",

"sys_updated_by": "system"

},

{

"ID": "id",

"asset_tag": "P1000626",

"display_name": "P1000626 - Apple MacBook Air 13\"",

"sys_updated_by": "system"

}

]

}

}

Human Readable Output

ServiceNow records

ID	asset_tag	display_name	sys_updated_by
id	P1000637	P1000637 - Apple MacBook Air 13"	system
id	P1000412	P1000412 - Apple MacBook Pro 17"	system
id	P1000563	P1000563 - Apple MacBook Pro 15"	system
id	P1000626	P1000626 - Apple MacBook Air 13"	system

servicenow-create-record

---

Creates a new record in the specified ServiceNow table.

Base Command

servicenow-create-record

Input

Argument Name	Description	Required
table_name	The name of the table in which to create a record.	Required
fields	Fields and their values to create the record with, in the format: fieldname1=value;fieldname2=value;...	Optional
custom_fields	Custom (user defined) fields in the format: fieldname1=value;fieldname2=value;...	Optional
input_display_value	Flag that indicates whether to set field values using the display value or the actual value. True will treat the input value as the display value. False treats the input values as actual values. The default setting is false.	Optional

For more information regarding the input_display_value argument, see: https://docs.servicenow.com/bundle/xanadu-platform-administration/page/administer/exporting-data/concept/query-parameters-display-value.html

Context Output

Path	Type	Description
ServiceNow.Record.ID	string	The unique record identifier for the record.
ServiceNow.Record.UpdatedBy	string	A string field that indicates the user who most recently updated the record.
ServiceNow.Record.UpdatedAt	date	A time-stamp field that indicates the date and time of the most recent update.
ServiceNow.Record.CreatedBy	string	A string field that indicates the user who created the record.
ServiceNow.Record.CreatedOn	date	A time-stamp field that indicates when a record was created.

Command Example

!servicenow-create-record table_name=alm_asset fields="asset_tag=P1000807"

Context Example

{

"ServiceNow": {

"Record": {

"CreatedAt": "2020-05-10 09:04:27",

"CreatedBy": "admin",

"ID": "id",

"UpdatedAt": "2020-05-10 09:04:27",

"UpdatedBy": "admin"

}

}

}

Human Readable Output

ServiceNow record created successfully

CreatedAt	CreatedBy	ID	UpdatedAt	UpdatedBy
2020-05-10 09:04:27	admin	id	2020-05-10 09:04:27	admin

servicenow-update-record

---

Updates a record in the specified ServiceNow table.

Base Command

servicenow-update-record

Input

Argument Name	Description	Required
table_name	The name of the table to update the record in.	Required
id	The system ID of the ticket to update.	Required
fields	Fields and their values to update in the record, in the format: fieldname1=value;fieldname2=value;...	Optional
custom_fields	Custom (user defined) fields and their values to update in the record, in the format: fieldname1=value;fieldname2=value;...	Optional
input_display_value	Flag that indicates whether to set field values using the display value or the actual value. True will treat the input value as the display value. False treats the input values as actual values. The default setting is false.	Optional
clear_fields	A comma-separated list of fields to clear.	Optional

For more information regarding the input_display_value argument, see: https://docs.servicenow.com/bundle/xanadu-platform-administration/page/administer/exporting-data/concept/query-parameters-display-value.html

Context Output

Path	Type	Description
ServiceNow.Record.ID	string	The unique record identifier for the record.
ServiceNow.Record.UpdatedBy	string	A string field that indicates the user who most recently updated the record.
ServiceNow.Record.UpdatedAt	date	A time-stamp field that indicates the date and time of the most recent update.
ServiceNow.Record.CreatedBy	string	A string field that indicates the user who created the record.
ServiceNow.Record.CreatedOn	date	A time-stamp field that indicates when a record was created.

Command Example

!servicenow-update-record table_name=alm_asset id=id custom_fields="display_name=test4"

Context Example

{

"ServiceNow": {

"Record": {

"CreatedAt": "2019-07-16 08:14:09",

"CreatedBy": "admin",

"ID": "id",

"UpdatedAt": "2020-05-09 19:08:42",

"UpdatedBy": "system"

}

}

}

Human Readable Output

ServiceNow record with ID 01a92c0d3790200044e0bfc8bcbe5d36 updated successfully

CreatedAt	CreatedBy	ID	UpdatedAt	UpdatedBy
2019-07-16 08:14:09	admin	id	2020-05-09 19:08:42	system

servicenow-delete-record

---

Deletes a record in the specified ServiceNow table.

Base Command

servicenow-delete-record

Input

Argument Name	Description	Required
table_name	The table name.	Required
id	The system ID of the ticket to delete.	Required

Context Output

There is no context output for this command.

Command Example

!servicenow-delete-record table_name=alm_asset id=id

Context Example

{}

Human Readable Output

ServiceNow record with ID id was successfully deleted.

servicenow-list-table-fields

---

Lists API fields for the specified ServiceNow table.

Base Command

servicenow-list-table-fields

Input

Argument Name	Description	Required
table_name	Table name	Required

Context Output

Path	Type	Description
ServiceNow.Field	string	Table API field name.

Command Example

!servicenow-list-table-fields table_name=alm_asset

Context Example

{

"ServiceNow": {

"Field": [

{

"Name": "parent"

},

{

"Name": "skip_sync"

},

{

"Name": "residual_date"

},

{

"Name": "residual"

},

{

"Name": "sys_updated_on"

},

{

"Name": "request_line"

},

{

"Name": "sys_updated_by"

},

{

"Name": "due_in"

},

{

"Name": "model_category"

},

{

"Name": "sys_created_on"

},

{

"Name": "sys_domain"

},

{

"Name": "disposal_reason"

},

{

"Name": "model"

},

{

"Name": "install_date"

},

{

"Name": "gl_account"

},

{

"Name": "invoice_number"

},

{

"Name": "sys_created_by"

},

{

"Name": "warranty_expiration"

},

{

"Name": "depreciated_amount"

},

{

"Name": "substatus"

},

{

"Name": "pre_allocated"

},

{

"Name": "owned_by"

},

{

"Name": "checked_out"

},

{

"Name": "display_name"

},

{

"Name": "sys_domain_path"

},

{

"Name": "delivery_date"

},

{

"Name": "retirement_date"

},

{

"Name": "beneficiary"

},

{

"Name": "install_status"

},

{

"Name": "cost_center"

},

{

"Name": "supported_by"

},

{

"Name": "assigned"

},

{

"Name": "purchase_date"

},

{

"Name": "work_notes"

},

{

"Name": "managed_by"

},

{

"Name": "sys_class_name"

},

{

"Name": "sys_id"

},

{

"Name": "po_number"

},

{

"Name": "stockroom"

},

{

"Name": "checked_in"

},

{

"Name": "resale_price"

},

{

"Name": "vendor"

},

{

"Name": "company"

},

{

"Name": "retired"

},

{

"Name": "justification"

},

{

"Name": "department"

},

{

"Name": "expenditure_type"

},

{

"Name": "depreciation"

},

{

"Name": "assigned_to"

},

{

"Name": "depreciation_date"

},

{

"Name": "old_status"

},

{

"Name": "comments"

},

{

"Name": "cost"

},

{

"Name": "quantity"

},

{

"Name": "acquisition_method"

},

{

"Name": "ci"

},

{

"Name": "sys_mod_count"

},

{

"Name": "old_substatus"

},

{

"Name": "sys_tags"

},

{

"Name": "order_date"

},

{

"Name": "support_group"

},

{

"Name": "reserved_for"

},

{

"Name": "due"

},

{

"Name": "location"

},

{

"Name": "lease_id"

},

{

"Name": "salvage_value"

}

]

}

}

Human Readable Output

ServiceNow Table fields - alm_asset

Name
parent
skip_sync
residual_date
residual
sys_updated_on
request_line
sys_updated_by
due_in
model_category
sys_created_on
sys_domain
disposal_reason
model
install_date
gl_account
invoice_number
sys_created_by
warranty_expiration
depreciated_amount
substatus
pre_allocated
owned_by
checked_out
display_name
sys_domain_path
delivery_date
retirement_date
beneficiary
install_status
cost_center
supported_by
assigned
purchase_date
work_notes
managed_by
sys_class_name
sys_id
po_number
stockroom
checked_in
resale_price
vendor
company
retired
justification
department
expenditure_type
depreciation
assigned_to
depreciation_date
old_status
comments
cost
quantity
acquisition_method
ci
sys_mod_count
old_substatus
sys_tags
order_date
support_group
reserved_for
due
location
lease_id
salvage_value

servicenow-query-computers

---

Queries the cmdb_ci_computer table in ServiceNow.

Base Command

servicenow-query-computers

Input

Argument Name	Description	Required
computer_id	Query by computer sys_id.	Optional
computer_name	Query by computer name.	Optional
query	Query by specified query, for more information about querying in ServiceNow, see https://docs.servicenow.com/bundle/istanbul-servicenow-platform/page/use/common-ui-elements/reference/r_OpAvailableFiltersQueries.html	Optional
asset_tag	Query by asset tag.	Optional
limit	Maximum number of query results. Default is 10.	Optional
offset	Starting record index to begin retrieving records from.	Optional

Context Output

Path	Type	Description
ServiceNow.Computer.ID	string	Computer system ID.
ServiceNow.Computer.AssetTag	string	Computer Asset tag.
ServiceNow.Computer.Name	string	Computer name.
ServiceNow.Computer.DisplayName	string	Computer display name.
ServiceNow.Computer.SupportGroup	string	Computer support group.
ServiceNow.Computer.OperatingSystem	string	Computer operating system.
ServiceNow.Computer.Company	string	Computer company system ID.
ServiceNow.Computer.AssignedTo	string	Computer assigned to user system ID.
ServiceNow.Computer.State	string	Computer state.
ServiceNow.Computer.Cost	string	Computer cost.
ServiceNow.Computer.Comments	string	Computer comments.

Command Example

!servicenow-query-computers asset_tag=P1000412

Context Example

{

"ServiceNow": {

"Computer": {

"AssetTag": "P1000412",

"AssignedTo": "admin",

"Company": "admin",

"Cost": "2499.99 USD",

"DisplayName": "P1000412 - MacBook Pro 17\"",

"ID": "id",

"Name": "MacBook Pro 17\"",

"OperatingSystem": "Mac OS 10 (OS/X)",

"State": "In use"

}

}

}

Human Readable Output

ServiceNow Computers

ID	Asset Tag	Name	Display Name	Operating System	Company	Assigned To	State	Cost
id	P1000412	MacBook Pro 17"	P1000412 - MacBook Pro 17"	Mac OS 10 (OS/X)	admin	admin	In use	2499.99 USD

servicenow-query-groups

---

Queries the sys_user_group table in ServiceNow.

Base Command

servicenow-query-groups

Input

Argument Name	Description	Required
group_id	Query by group system ID.	Optional
group_name	Query by group name.	Optional
query	Query by specified query, for more information about querying in ServiceNow, see https://docs.servicenow.com/bundle/istanbul-servicenow-platform/page/use/common-ui-elements/reference/r_OpAvailableFiltersQueries.html	Optional
limit	Maximum number of query results. Default is 10.	Optional
offset	Starting record index to begin retrieving records from.	Optional

Context Output

Path	Type	Description
ServiceNow.Group.ID	string	Group system ID.
ServiceNow.Group.Description	string	Group description.
ServiceNow.Group.Name	string	Group name.
ServiceNow.Group.Manager	string	Group manager system ID.
ServiceNow.Group.Updated	date	Date/time the group was last updated.

Command Example

!servicenow-query-groups group_name=test1

Context Example

{}

Human Readable Output

No groups found.

servicenow-query-users

---

Queries the sys_user table in ServiceNow.

Base Command

servicenow-query-users

Input

Argument Name	Description	Required
user_id	Query by user system ID.	Optional
user_name	Query by username.	Optional
query	Query by specified query, for more information about querying in ServiceNow, see https://docs.servicenow.com/bundle/istanbul-servicenow-platform/page/use/common-ui-elements/reference/r_OpAvailableFiltersQueries.html	Optional
limit	Maximum number of query results. Default is 10.	Optional
offset	Starting record index to begin retrieving records from.	Optional

Context Output

Path	Type	Description
ServiceNow.User.ID	string	User system ID.
ServiceNow.User.Name	string	User name (first and last).
ServiceNow.User.UserName	string	User username.
ServiceNow.User.Email	string	User email address.
ServiceNow.User.Created	date	Date/time the user was created.
ServiceNow.User.Updated	date	Date/time the user was last updated.

Command Example

!servicenow-query-users user_name=sean.bonnet

Context Example

{

"ServiceNow": {

"User": {

"Created": "2012-02-18 03:04:50",

"Email": "sean.bonnet@example.com",

"ID": "id",

"Name": "Sean Bonnet",

"Updated": "2020-04-25 19:01:46",

"UserName": "sean.bonnet"

}

}

}

Human Readable Output

ServiceNow Users

ID	Name	User Name	Email	Created	Updated
id	Sean Bonnet	sean.bonnet	sean.bonnet@example.com	2012-02-18 03:04:50	2020-04-25 19:01:46

servicenow-get-table-name

---

Gets table names by a label to use in commands.

Base Command

servicenow-get-table-name

Input

Argument Name	Description	Required
label	The table label, for example: Asset, Incident, IP address, and so on.	Required
limit	Maximum number of query results. Default is 10.	Optional
offset	Starting record index to begin retrieving records from.	Optional

Context Output

Path	Type	Description
ServiceNow.Table.ID	string	Table system ID.
ServiceNow.Table.Name	string	Table name to use in commands, for example: alm_asset.
ServiceNow.Table.SystemName	string	Table system name, for example: Asset.

Command Example

!servicenow-get-table-name label=ACE

Context Example

{

"ServiceNow": {

"Table": {

"ID": "id",

"Name": "cmdb_ci_lb_ace",

"SystemName": "CMDB CI Lb Ace"

}

}

}

Human Readable Output

ServiceNow Tables for label - ACE

ID	Name	System Name
id	cmdb_ci_lb_ace	CMDB CI Lb Ace

servicenow-get-ticket-notes

---

Gets notes from the specified ServiceNow ticket. Notes can be retrieved either by granting Read permissions for the sys_journal_field table, or by setting the use_display_value parameter to true.

Base Command

servicenow-get-ticket-notes

Input

Argument Name	Description	Required
id	Ticket System ID.	Required
limit	Maximum number of ticket notes. Default is 10.	Optional
offset	Offset of the ticket notes. Default is 0.	Optional
use_display_value	Whether to use sysparm_display_value to retrieve comments and work notes. Overrides the value set in the instance configuration. Possible values are: true, false.	Optional
ticket_type	The ticket type that notes should be retrieved for when using the use_display_value option. Possible values are: incident, problem, change_request, sc_request, sc_task, sc_req_item, sn_si_incident. Default is incident.	Optional
add_as_entry	Whether to add ticket notes and work notes as notes in the War Room. Possible values are true, false.	Optional

Context Output

Path	Type	Description
ServiceNow.Ticket.ID	string	Ticket ID.
ServiceNow.Ticket.Note.Value	unknown	Ticket note value.
ServiceNow.Ticket.Note.CreatedOn	date	Date/time the ticket note was created.
ServiceNow.Ticket.Note.CreatedBy	string	User who created the ticket note.
ServiceNow.Ticket.Note.Type	string	Ticket note type.

Command Example

!servicenow-get-ticket-notes id=id

Context Example

{

"ServiceNow": {

"Ticket": {

"ID": "id",

"Note": [

{

"CreatedBy": "admin",

"CreatedOn": "2020-01-26 00:43:54",

"Type": "Comment",

"Value": "JavaScript error (line 202) on the home page. Not sure what is\n\t\t\tgoing on, does not happen on my Windows machine!\n\t\t"

},

{

"CreatedBy": "admin",

"CreatedOn": "2020-04-17 23:12:43",

"Type": "Comment",

"Value": "Added an attachment"

},

{

"CreatedBy": "admin",

"CreatedOn": "2020-05-10 09:04:15",

"Type": "Work Note",

"Value": "[code]<a class=\"web\" target=\"_blank\" href=\"http://www.demisto.com\" >demsito_link</a>[/code]"

},

{

"CreatedBy": "admin",

"CreatedOn": "2020-05-10 09:04:18",

"Type": "Work Note",

"Value": "Nice work!"

}

]

}

}

}

Human Readable Output

ServiceNow notes for ticket 471d4732a9fe198100affbf655e59172

Value	Created On	Created By	Type
JavaScript error (line 202) on the home page. Not sure what is going on, does not happen on my Windows machine!	2020-01-26 00:43:54	admin	Comment
Added an attachment	2020-04-17 23:12:43	admin	Comment
[code]demsito_link[/code]	2020-05-10 09:04:15	admin	Work Note
Nice work!	2020-05-10 09:04:18	admin	Work Note

servicenow-add-tag

---

Adds a tag to a ticket. The tag will be visible in the label_entry table and can be retrieved using the "!servicenow-query-table table_name=label_entry fields=title,table,sys_id,id_display,id_type" command.

Base Command

servicenow-add-tag

Input

Argument Name	Description	Required
id	Ticket System ID.	Required
tag_id	Tag system ID. Can be retrieved using the "!servicenow-query-table table_name=label fields=name,active,sys_id" command.	Required
title	Tag title. For example: "Incident - INC000001".	Required
ticket_type	Ticket type. Can be "incident", "problem", "change_request", "sc_request", "sc_task", "sc_req_item", or "sn_si_incident". Default is "incident".	Optional

Context Output

Path	Type	Description
ServiceNow.Ticket.ID	String	The unique ticket identifier.
ServiceNow.Ticket.TagTitle	String	Ticket tag title.
ServiceNow.Ticket.TagID	String	Ticket tag ID.

servicenow-query-items

---

Queries the sc_cat_item table in ServiceNow.

Base Command

servicenow-query-items

Input

Argument Name	Description	Required
name	Query by name. Does not require an exact match.	Optional
offset	Starting record index to begin retrieving records from.	Optional
limit	Maximum number of query results. Default is 10.	Optional

Context Output

Path	Type	Description
ServiceNow.CatalogItem.ID	String	Catalog item system ID.
ServiceNow.CatalogItem.Name	String	Catalog item name.
ServiceNow.CatalogItem.Description	String	Catalog item description.
ServiceNow.CatalogItem.Price	Number	Catalog item price.

Command Example

!servicenow-query-items name=laptop limit=2

Context Example

{

"ServiceNow": {

"CatalogItem": [

{

"Description": "Lenovo - Carbon x1",

"ID": "id",

"Name": "Standard Laptop",

"Price": "1100"

},

{

"Description": "Dell XPS 13",

"ID": "id",

"Name": "Development Laptop (PC)",

"Price": "1100"

}

]

}

}

Human Readable Output

ServiceNow Catalog Items

ID	Name	Price	Description
id	Standard Laptop	1100	Lenovo - Carbon x1
id	Development Laptop (PC)	1100	Dell XPS 13

servicenow-get-item-details

---

Retrieves item details by system ID.

Base Command

servicenow-get-item-details

Input

Argument Name	Description	Required
id	Catalog item system ID.	Required

Context Output

Path	Type	Description
ServiceNow.CatalogItem.ID	String	Catalog item system ID.
ServiceNow.CatalogItem.Name	String	Catalog item name.
ServiceNow.CatalogItem.Description	String	Catalog item description.
ServiceNow.CatalogItem.Price	Number	Catalog item price.
ServiceNow.CatalogItem.Variables.Mandatory	Boolean	Is the variable mandatory as part of the ordering process.
ServiceNow.CatalogItem.Variables.Name	String	A name to identify the question.
ServiceNow.CatalogItem.Variables.Question	String	Question to ask users ordering the catalog item.
ServiceNow.CatalogItem.Variables.Type	String	The variable type.

Command Example

!servicenow-get-item-details id=id

Context Example

{

"ServiceNow": {

"CatalogItem": {

"Description": "Dell XPS 13",

"ID": "id",

"Name": "Development Laptop (PC)",

"Price": "$1,000.00",

"Variables": [

{

"Mandatory": false,

"Name": "hard_drive",

"Question": "What size solid state drive do you want?",

"Type": "Multiple Choice"

},

{

"Mandatory": false,

"Name": "requested_os",

"Question": "Please specify an operating system",

"Type": "Multiple Choice"

}

]

}

}

}

Human Readable Output

ServiceNow Catalog Item

ID	Name	Description
id	Development Laptop (PC)	Dell XPS 13

Item Variables

Question	Type	Name	Mandatory
What size solid state drive do you want?	Multiple Choice	hard_drive	false
Please specify an operating system	Multiple Choice	requested_os	false

servicenow-create-item-order

---

Orders the specified catalog item.

Base Command

servicenow-create-item-order

Input

Argument Name	Description	Required
id	Catalog item system ID.	Required
quantity	Quantity of the item to order.	Required
variables	If there are mandatory variables defined for the item, they must be passed to the endpoint. Can be retrieved using the servicenow-get-item-details command. For example, var1=value1;var2=value2.	Optional

Context Output

Path	Type	Description
ServiceNow.OrderRequest.ID	String	Generated request system ID.
ServiceNow.OrderRequest.RequestNumber	String	Number of the generated request.

Command Example

!servicenow-create-item-order id=id quantity=1 variables="hard_drive=16GB;requested_os=linux"

Context Example

{

"ServiceNow": {

"OrderRequest": {

"ID": "id",

"RequestNumber": "REQ0010004"

}

}

}

Human Readable Output

ServiceNow Order Request

ID	Request Number
id	REQ0010004

servicenow-document-route-to-queue

---

Documents a route to a queue. Requires an installation of the Advanced Work Assignments plugin. An active queue and service channel to the designated table.

Base Command

servicenow-document-route-to-queue

Input

Argument Name	Description	Required
queue_id	Queue ID. Can be retrieved using the "!servicenow-query-table table_name=awa_queue fields=name,number,order" command.	Required
document_table	Document table.	Optional
document_id	Document ID.	Required

Context Output

Path	Type	Description
ServiceNow.WorkItem.WorkItemID	String	Unique ID of the work item assigned to the queue.
ServiceNow.WorkItem.DocumentTable	String	Name of the table associated with the document
ServiceNow.WorkItem.DocumentID	String	Unique ID of the document to be routed to the queue.
ServiceNow.WorkItem.QueueID	String	Unique ID of the queue on which to route a document.
ServiceNow.WorkItem.DisplayName	String	Name of the document to be routed by this work item, for example: case record.

get-mapping-fields

---

Returns the list of fields for an incident type. This command is for debugging purposes.

Base Command

get-mapping-fields

Input

There are no input arguments for this command.

Context Output

There is no context output for this command.

get-remote-data

---

Get remote data from a remote incident. This method does not update the current incident, and should be used for debugging purposes.

Base Command

get-remote-data

Input

Argument Name	Description	Required
id	The ticket ID.	Required
lastUpdate	Retrieve entries that were created after lastUpdate.	Required

Context Output

There is no context output for this command.

servicenow-get-tasks-for-co

---

gets the tasks associated to change request

Base Command

servicenow-get-tasks-for-co

Input

Argument Name	Description	Required
id	ID of the change request.	Required

Context Output

Path	Type	Description
ServiceNow.Tasks.ID	String	Task ID
ServiceNow.Tasks.Description	Unknown	Description of task
ServiceNow.Tasks.Name	Unknown	Name of task
ServiceNow.Tasks.State	Unknown	state of task

Command example

!servicenow-get-tasks-for-co id="1234"

Context Example

{

"ServiceNow": {

"Tasks": {

"ServiceNow.Tasks(val.ID===obj.ID)": [

{

"Description": "test",

"ID": "1234",

"Name": "CTASK0010007",

"State": "1 - New"

}

]

}

}

}

Human Readable Output

ServiceNow Catalog Items

ID	Name	State	Description
1234	CTASK0010007	1 - New	test

servicenow-create-co-from-template

---

Create a change request from a template.

Base Command

servicenow-create-co-from-template

Input

Argument Name	Description	Required
template	Template for creating a standard change request.	Required
force_default_url	Whether to force-use the default api version (not versioned), ignoring the API version parameter. Default is false	Optional

Context Output

Path	Type	Description
ServiceNow.Ticket.ID	Unknown	ServiceNow ticket ID.
ServiceNow.Ticket.OpenedBy	Unknown	ServiceNow ticket opener ID.
ServiceNow.Ticket.CreatedOn	Unknown	ServiceNow ticket creation date.
ServiceNow.Ticket.Assignee	Unknown	ServiceNow ticket assignee ID.
ServiceNow.Ticket.State	Unknown	ServiceNow ticket state.
ServiceNow.Ticket.Summary	Unknown	ServiceNow ticket short summary.
ServiceNow.Ticket.Number	Unknown	ServiceNow ticket number.
ServiceNow.Ticket.Active	Unknown	ServiceNow ticket active.
ServiceNow.Ticket.AdditionalComments	Unknown	ServiceNow ticket comments.
ServiceNow.Ticket.Priority	Unknown	ServiceNow ticket priority.
ServiceNow.Ticket.OpenedAt	Unknown	ServiceNow ticket opening time.
ServiceNow.Ticket.ResolvedBy	Unknown	ServiceNow ticket resolver ID.
ServiceNow.Ticket.CloseCode	Unknown	ServiceNow ticket close code.

Command example

!servicenow-create-co-from-template template=1234

Context Example

{

"ServiceNow": {

"Ticket": {

"ServiceNow.Ticket(val.ID===obj.ID)": {

"Active": {

"display_value": "true",

"value": true

},

"AdditionalComments": {

"display_value": "",

"value": ""

},

"CloseCode": {

"display_value": "",

"value": ""

},

"CreatedOn": {

"display_value": "03/05/2022 08:17:00",

"display_value_internal": "2022-05-03 08:17:00",

"value": "2022-05-03 15:17:00"

},

"Creator": "1234",

"ID": {

"display_value": "1234",

"value": "1234"

},

"Number": {

"display_value": "CHG001234",

"value": "CHG001234"

},

"OpenedAt": {

"display_value": "03/05/2022 08:17:00",

"display_value_internal": "2022-05-03 08:17:00",

"value": "2022-05-03 15:17:00"

},

"OpenedBy": "1234",

"Priority": [

"4 - Low"

],

"State": {

"display_value": "New",

"value": -5

},

"Summary": {

"display_value": "Add network switch to cabinet",

"value": "Add network switch to cabinet"

}

},

"Ticket(val.ID===obj.ID)": {

"Active": {

"display_value": "true",

"value": true

},

"AdditionalComments": {

"display_value": "",

"value": ""

},

"CloseCode": {

"display_value": "",

"value": ""

},

"CreatedOn": {

"display_value": "03/05/2022 08:17:00",

"display_value_internal": "2022-05-03 08:17:00",

"value": "2022-05-03 15:17:00"

},

"Creator": "1234",

"ID": {

"display_value": "1234",

"value": "1234"

},

"Number": {

"display_value": "CHG001234",

"value": "CHG001234"

},

"OpenedAt": {

"display_value": "03/05/2022 08:17:00",

"display_value_internal": "2022-05-03 08:17:00",

"value": "2022-05-03 15:17:00"

},

"OpenedBy": "6b0e49021b158150042611b4bd4bcb5e",

"Priority": [

"4 - Low"

],

"State": {

"display_value": "New",

"value": -5

},

"Summary": {

"display_value": "Add network switch to cabinet",

"value": "Add network switch to cabinet"

}

}

}

}

}

Human Readable Output

ServiceNow ticket was created successfully

System ID	Number	Impact	Urgency	Priority	State	Created On	Created By	Active	Description	Opened At	Short Description
1234	CHG001234	3 - Ministry	3 - Low	4 - Low	-5 - New	2022-05-03 15:17:00	admin_cnt_test_Jan2022-01	true	This standard change template describes adding a new network switch to a datacenter cabinet	2022-05-03 15:17:00	Add network switch to cabinet

servicenow-generic-api-call

---

Generic call to ServiceNow api

Base Command

servicenow-generic-api-call

Input

Argument Name	Description	Required
method	action to be performed on path. Possible values are: GET, POST, PATCH, DELETE. Default is 0.	Required
path	the API path starting with forward slash (/).	Required
json_body	whether or not the request body is json. Possible values are: true, false. Default is false.	Optional
body	json to send in body.	Optional
headers	json of headers to add.	Optional
sc_api	Service Catalog Call. Possible values are: true, false. Default is false.	Optional
cr_api	Change Request Call. Possible values are: true, false. Default is false.	Optional
custom_api	Define a custom API root (like /api/custom/tasks).	Optional

Context Output

Path	Type	Description
ServiceNow.Generic.Response	string	Generic response to servicenow api

Command example

!servicenow-generic-api-call method=GET path="/table/sn_cmdb_workspace_cmdb_ci_demo"

Context Example

{

"ServiceNow": {

"Generic": {

"Response": {

"result": [

{

"sys_created_by": "admin_test_Nov2020-01",

"sys_created_on": "2021-02-13 13:36:55",

"sys_id": "1234",

"sys_mod_count": "0",

"sys_tags": "",

"sys_updated_by": "admin_test_Nov2020-01",

"sys_updated_on": "2021-02-13 13:36:55"

}

]

}

}

}

}

Human Readable Output

Request for GET method is successful

servicenow-get-ticket-attachments

---

Retrieve file attachments from tickets.

Base Command

servicenow-get-ticket-attachments

Input

Argument Name	Description	Required
sys_id	sys_id of the ticket containing the file.	Required

Context Output

There is no context output for this command.

Human Readable Output

Successfully retrieved attachments for ticket with sys id 111

Troubleshooting

The following are tips for handling issues with mirroring incidents between ServiceNow and Cortex XSOAR.

Issue	Recommendation
Unauthorized connection error.	Check the credentials. Make sure the oauth ID and secret are created using the account configured on Cortex XSOAR. Refer the KB. Check the roles to ensure the following roles are granted - itil (For ServiceNow v2), cmdb_inst_admin (For ServiceNow CMDB), rest_api_explorer, snc_platform_rest_api_access, web_service_admin. Use the client ID and secret in place of username and password in the instance configuration. And use the account's username and password during the oauth step in the pop up window.
Mirroring is not working.	Open Context Data and search for dbot. Confirm the dbot fields are configured correctly either through the mapper for that specific incident type or using setIncident. Specifically, make sure the integration instance is configured correctly for the mirroring direction (ingoing, outgoing, both) - dbotMirrorId, dbotMirrorDirection, dbotMirrorInstance, dbotMirrorTags
Comments and work notes from before incident creation are not fetched/mirrored.	Mirroring settings apply only for incidents that are fetched after applying the settings. For example, if a user creates a ServiceNow incident with added comments/work notes and then defines a ServiceNow integration instance with mirroring in Cortex XSOAR, those comments/work notes are not fetched with the incident in Cortex XSOAR. To fetch pre-existing comments/work notes, you can use the servicenow-get-ticket-notes command. To retrieve comments and work notes using this command follow one of these steps: - Grant elevated privileges to the sys_journal_field. This is done by assigning the Itil role (see this ServiceNow community link on giving elevated read access and potential risks). - Select the Use Display Value checkbox in the instance configuration. This will retrieve comments and work notes using their display value from ServiceNow. When choosing this option, you must select the date format of your instance from the Instance Date Format dropdown menu (see the ServiceNow documentation for an explanation how to find the date format of your instance). Note that in this case, the values that will appear under the sys_created_by field of the retrieved notes are the display values from ServiceNow and not the system values, e.g., "System Administrator" instead of "admin".
Ticket is not closing.	Verify the integration instance is configured correctly for the Mirrored XSOAR Ticket closure method or Mirrored ServiceNow Ticket closure method fields.
Required fields are not getting sent.	This may be a mapping issue, specifically if close reason and close notes are required.
Auto-Extract extracts sys_id as a file.	This is by design. To resolve this: - Turn off Auto-Extract for all fields and only used on specific fields. - Turn off Auto-Extract at the incident level and use the task level for extraction.
Date displayed in the Cortex XSOAR layout is not aligned with ServiceNow.	1. Navigate to the incoming-mapper you are using. 2. For every field that uses the DateStringToISOFormat script, change the dayfirst argument to true.
