Palo Alto Networks WildFire v2

Use the Palo Alto Networks Wildfire integration to automatically identify unknown threats and stop attackers in their tracks by performing malware dynamic analysis.

Palo Alto Networks WildFire v2 Playbooks

1. WildFire - Detonate File
2. Detonate URL - WildFire v2.1

##Use Cases

1. Send a File sample to WildFire.
2. Upload a file hosted on a website to WildFire.
3. Submit a webpage to WildFire.
4. Get a report regarding the sent samples using file hash.

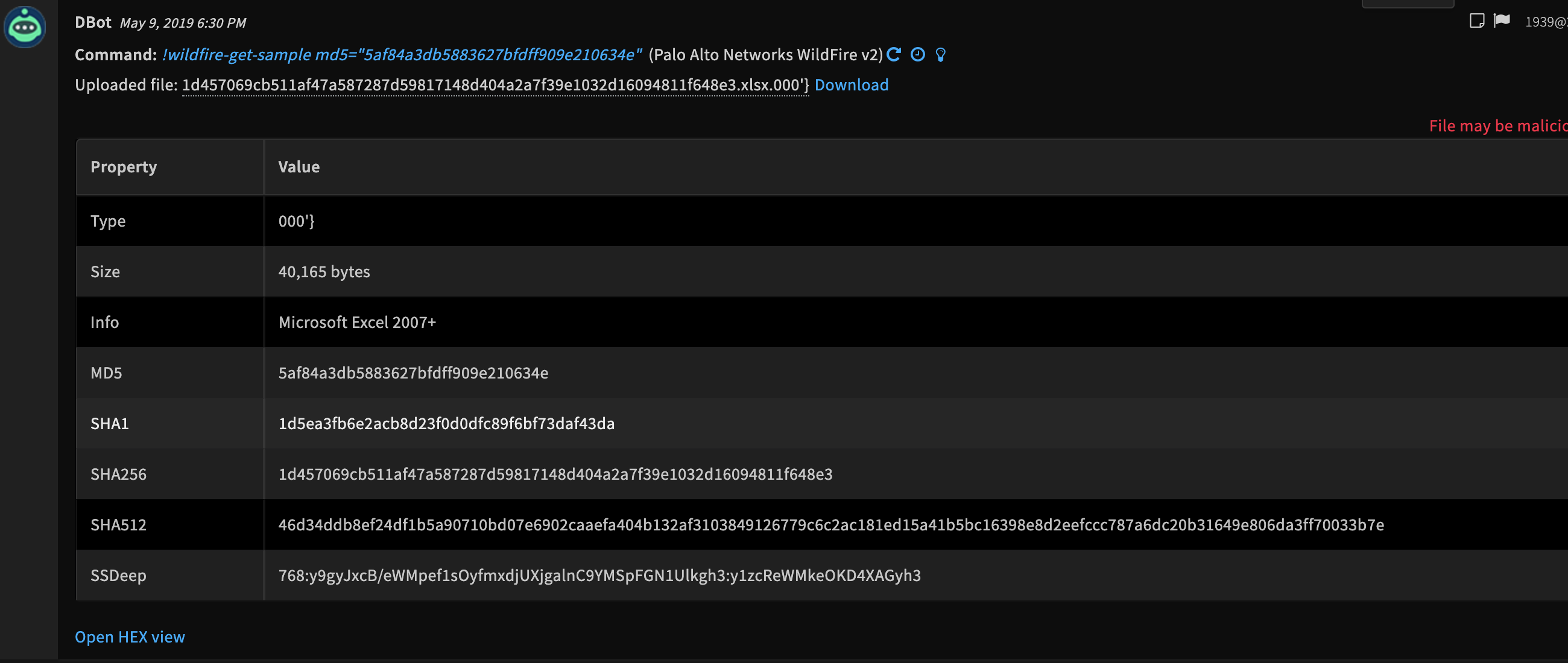

5. Get sample file from WildFire.
6. Get verdict regarding multiple hashes(up to 500) using the wildfire-get-verdicts command.

Configure WildFire v2 on Cortex XSOAR

1. Navigate to Settings > Integrations > Servers & Services.

2. Search for WildFire v2.

3. Click Add instance to create and configure a new integration instance.

   Parameter	Required
   Server base URL (e.g. https://192.168.0.1/publicapi)	True
   API Key	True
   Source Reliability	Reliability of the source providing the intelligence data.
   Trust any certificate (not secure)	False
   Use system proxy settings	False
   Return warning entry for unsupported file types	False

4. Click Test to validate the URLs, token, and connection.

Commands

You can execute these commands from the Cortex XSOAR CLI, as part of an automation, or in a playbook. After you successfully execute a command, a DBot message appears in the War Room with the command details.

file

---

Retrieve results for a file hash using WildFire

Base Command

file

Input

Argument Name	Description	Required
file	File hash to check.	Optional
md5	MD5 hash to check.	Optional
sha256	SHA256 hash to check.	Optional

Context Output

Path	Type	Description
File.Name	string	Name of the file.
File.Type	string	File type, for example: "PE"
File.Size	string	Size of the file.
File.MD5	string	MD5 hash of the file.
File.SHA1	string	SHA1 hash of the file.
File.SHA256	string	SHA256 hash of the file.
File.Malicious.Vendor	string	For malicious files, the vendor that made the decision.
File.FeedRelatedIndicators.value	string	Indicators that are associated with the File.
File.FeedRelatedIndicators.type	string	The type of the indicators that are associated with the File.
File.Tags	string	Tags that are associated with the File.
File.Behavior.details	string	File behavior details.
File.Behavior.action	string	File behavior action.
DBotScore.Indicator	string	The indicator that was tested.
DBotScore.Type	string	The indicator type.
DBotScore.Vendor	string	The vendor used to calculate the score.
DBotScore.Score	number	The actual score.
WildFire.Report.Status	string	The status of the submission.
WildFire.Report.SHA256	string	SHA256 hash of the submission.
InfoFile.EntryID	Unknown	The EntryID of the report file.
InfoFile.Extension	string	Extension of the report file.
InfoFile.Name	string	Name of the report file.
InfoFile.Info	string	Details of the report file.
InfoFile.Size	number	Size of the report file.
InfoFile.Type	string	The report file type.

Command Example

!file file=735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f

Context Example

{

"DBotScore": [

{

"Indicator": "735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f",

"Score": 1,

"Type": "hash",

"Vendor": "WildFire"

},

{

"Indicator": "735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f",

"Score": 1,

"Type": "file",

"Vendor": "WildFire"

}

],

"WildFire": {

"Report": {

"SHA256": "735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f",

"Status": "Success"

}

}

}

Human Readable Output

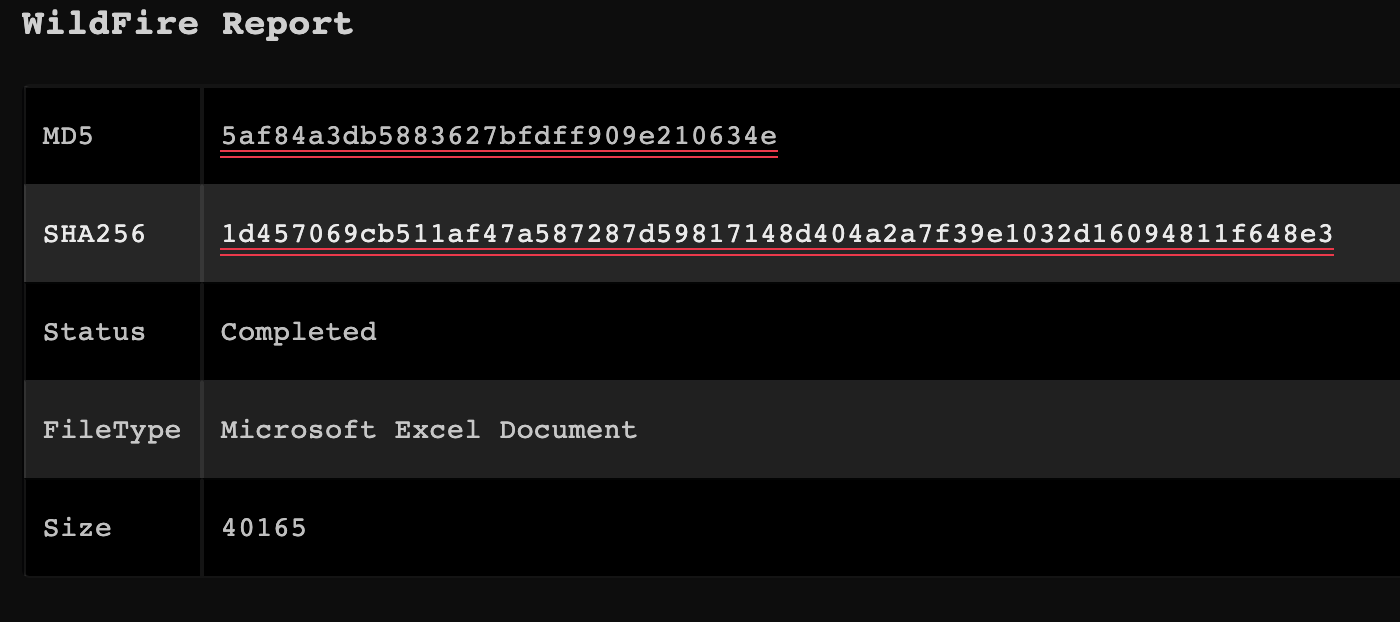

WildFire File Report

FileType	MD5	SHA256	Size	Status
JScript	ccdb1053f56a2d297906746bc720ef2a	735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f	12	Completed

wildfire-upload

---

Uploads a file to WildFire for analysis.

Base Command

wildfire-upload

Input

Argument Name	Description	Required
upload	ID of the entry containing the file to upload.	Required

Context Output

Path	Type	Description
WildFire.Report.MD5	string	MD5 hash of the submission.
WildFire.Report.SHA256	string	SHA256 hash of the submission.
WildFire.Report.FileType	string	The submission type.
WildFire.Report.Size	number	The size of the submission.
WildFire.Report.Status	string	The status of the submission.

Command Example

!wildfire-upload upload=294@675f238c-ed75-4cae-83d2-02b6b820168b

Context Example

{

"WildFire": {

"Report": {

"FileType": "Jscript for WSH",

"MD5": "ccdb1053f56a2d297906746bc720ef2a",

"SHA256": "735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f",

"Size": "12",

"Status": "Pending",

"URL": null

}

}

}

Human Readable Output

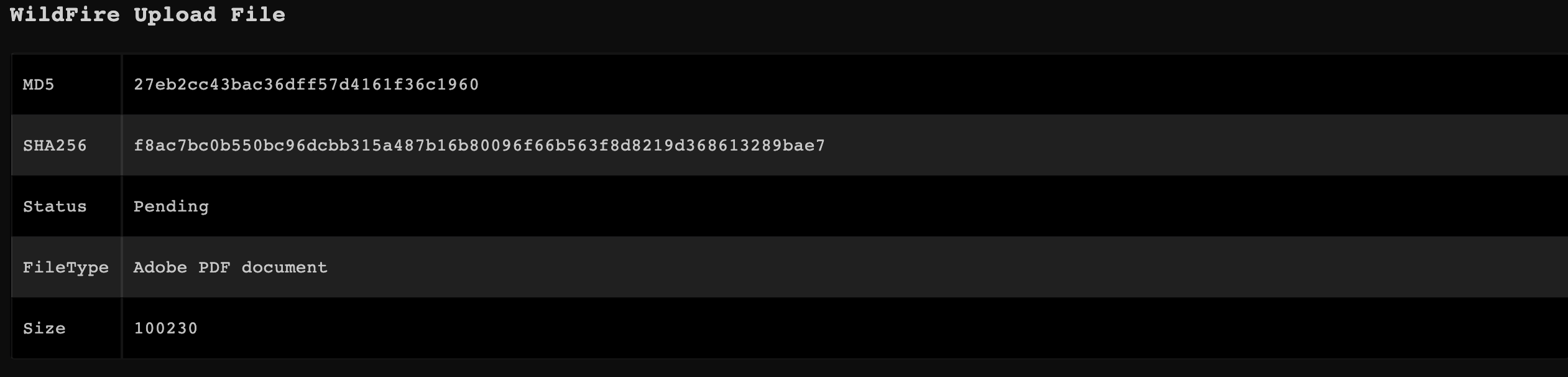

WildFire Upload File

FileType	MD5	SHA256	Size	Status
Jscript for WSH	ccdb1053f56a2d297906746bc720ef2a	735bcfa56930d824f9091188eeaac2a1d68bc64a21f90a49c5ff836ed6ea723f	12	Pending

wildfire-upload-file-url

---

Uploads the URL of a remote file to WildFire for analysis.

Base Command

wildfire-upload-file-url

Input

Argument Name	Description	Required
upload	URL of the remote file to upload.	Required

Context Output

Path	Type	Description
WildFire.Report.MD5	string	MD5 hash of the submission.
WildFire.Report.SHA256	string	SHA256 hash of the submission.
WildFire.Report.Status	string	The status of the submission.
WildFire.Report.URL	string	URL of the submission.

Command Example

!wildfire-upload-file-url upload=http://www.software995.net/bin/pdf995s.exe

Context Example

{

"WildFire": {

"Report": {

"FileType": "PE32 executable",

"MD5": "891b77e864c88881ea98be867e74177f",

"SHA256": "555092d994b8838b8fa18d59df4fdb26289d146e071e831fcf0c6851b5fb04f8",

"Size": "5958304",

"Status": "Pending",

"URL": "http://www.software995.net/bin/pdf995s.exe"

}

}

}

Human Readable Output

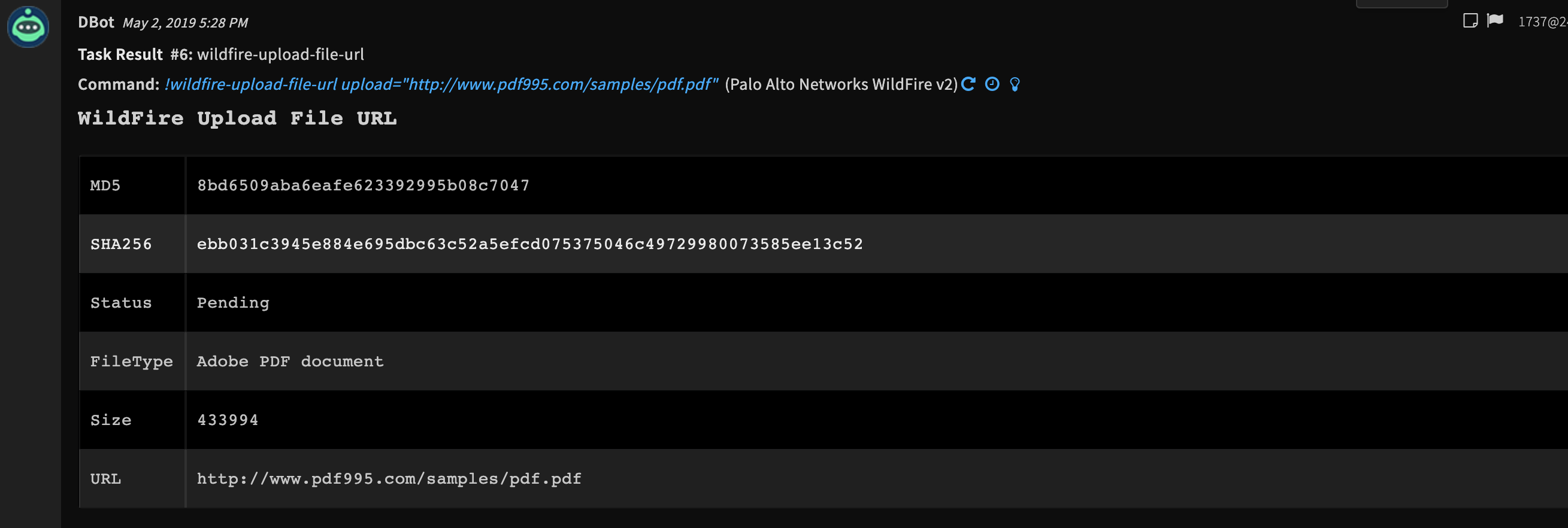

WildFire Upload File URL

FileType	MD5	SHA256	Size	Status	URL
PE32 executable	891b77e864c88881ea98be867e74177f	555092d994b8838b8fa18d59df4fdb26289d146e071e831fcf0c6851b5fb04f8	5958304	Pending	http://www.software995.net/bin/pdf995s.exe

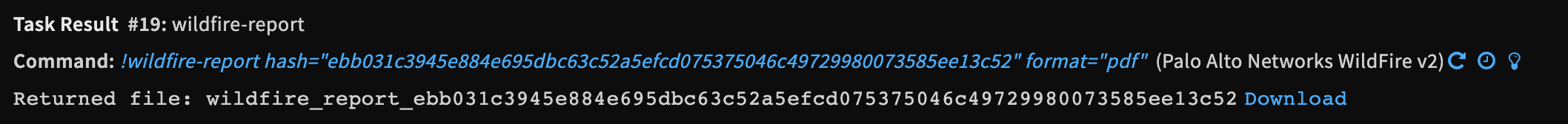

wildfire-report

---

Retrieves results for a file hash using WildFire.

Base Command

wildfire-report

Input

Argument Name	Description	Required
md5	MD5 hash to check.	Optional
sha256	SHA256 hash to check.	Optional
hash	Deprecated - Use the sha256 argument instead.	Optional
format	Request a structured report (XML or PDF). Possible values are: xml, pdf. Default is pdf.	Optional
verbose	Receive extended information from WildFire. Possible values are: true, false. Default is false.	Optional
url	Retrieves results for a URL using WildFire. The report format is in JSON.	Optional

Context Output

Path	Type	Description
File.Name	string	Name of the file.
File.Type	string	File type, for example: "PE"
File.Size	number	Size of the file.
File.MD5	string	MD5 hash of the file.
File.SHA1	string	SHA1 hash of the file.
File.SHA256	string	SHA256 hash of the file.
File.Malicious.Vendor	string	For malicious files, the vendor that made the decision.
DBotScore.Indicator	string	The indicator that was tested.
DBotScore.Type	string	The indicator type.
DBotScore.Vendor	string	Vendor used to calculate the score.
DBotScore.Score	number	The actual score.
WildFire.Report.Status	string	The status of the submissiom.
WildFire.Report.SHA256	string	SHA256 hash of the submission.
InfoFile.EntryID	string	The EntryID of the report file.
InfoFile.Extension	string	The extension of the report file.
InfoFile.Name	string	The name of the report file.
InfoFile.Info	string	Details of the report file.
InfoFile.Size	number	The size of the report file.
InfoFile.Type	string	The report file type.
WildFire.Report.Network.UDP.IP	string	Submission related IPs, in UDP protocol.
WildFire.Report.Network.UDP.Port	string	Submission related ports, in UDP protocol.
WildFire.Report.Network.TCP.IP	string	Submission related IPs, in TCP protocol.
WildFire.Report.Network.TCP.Port	string	Submission related ports, in TCP protocol.
WildFire.Report.Network.DNS.Query	string	Submission DNS queries.
WildFire.Report.Network.DNS.Response	string	Submission DNS responses.
WildFire.Report.Evidence.md5	string	Submission evidence MD5 hash.
WildFire.Report.Evidence.Text	string	Submission evidence text.
WildFire.Report.detection_reasons.description	string	Reason for the detection verdict.
WildFire.Report.detection_reasons.name	string	Name of the detection.
WildFire.Report.detection_reasons.type	string	Type of the detection.
WildFire.Report.detection_reasons.verdict	string	Verdict of the detection.
WildFire.Report.detection_reasons.artifacts	unknown	Artifacts of the detection reasons.
WildFire.Report.iocs	unknown	Associated IOCs.
WildFire.Report.verdict	string	The verdict of the report.

Command Example

!wildfire-report url=https://www.demisto.com

Context Example

{

"WildFire": {

"Report": {

"Status": "Success",

"URL": "https://www.demisto.com",

"da_packages": [

"package--5420f34e-5eb9-499b-c6a3-5f34abd73232",

"package--36e99aa9-abc1-468a-7035-e43756ce9250"

],

"detection_reasons": [

{

"artifacts": [

{

"entity_id": "malware-instance--4c958c0e-0cd1-4749-c887-a0372acfe8fc",

"package": "package--903b10d4-d6b9-4a99-f09f-576dd0b36d51",

"type": "artifact-ref"

}

],

"description": "Known benign by a trusted source",

"name": "trusted_list",

"type": "detection-reason",

"verdict": "benign"

}

],

"iocs": [],

"maec_packages": [

{

"id": "package--5420f34e-5eb9-499b-c6a3-5f34abd73232",

"maec_objects": [

{

"analysis_metadata": [

{

"analysis_type": "combination",

"conclusion": "unknown",

"description": "Automated analysis inside a web browser",

"end_time": "2021-03-10T16:59:49.910871563Z",

"is_automated": true,

"start_time": "2021-03-10T16:58:50.614000082Z",

"tool_refs": [

"382"

]

}

],

"id": "malware-instance--df22b5b9-22b5-490a-9535-4f5ba7663455",

"instance_object_refs": [

"381"

],

"type": "malware-instance"

}

],

"observable_objects": {

"0": {

"type": "ipv4-addr",

"value": "1.1.1.1"

},

"1": {

"resolves_to_refs": [

"0"

],

"type": "domain-name",

"value": "www.demisto.com"

},

"10": {

"global_variable_refs": [

"7"

],

"is_main": true,

"observed_alert_refs": [

"8"

],

"request_ref": "6",

"type": "x-wf-url-page-frame",

"url_ref": "9"

},

"100": {

"artifact_ref": "99",

"type": "x-wf-url-resource"

},

"148": {

"extensions": {

"x-wf-content-description": {

"content_size_bytes": 86,

"sniffed_mime_type": "text/plain"

}

},

"hashes": {

"SHA-256": "56006cc15834ed33e0e22a69039a4c8f61502a536d05986e455680456686ca52"

},

"type": "artifact"

},

"149": {

"dst_ref": "4",

"end": "2021-03-10T16:58:32.855999Z",

"extensions": {

"http-request-ext": {

"request_header": {

"Accept-Language": "en-US,en;q=0.9",

"Referer": "https://www.paloaltonetworks.com/cortex/xsoar",

"Sec-Fetch-Mode": "no-cors",

"User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/76.0.3809.71 Safari/537.36"

},

"request_method": "get",

"request_value": "/apps/pan/public/singlePageReactModel?pageId=/content/pan/en_US/cortex/xsoar"

},

"x-wf-http-response-ext": {

"message_body_data_ref": "148",

"response_code": 200,

"response_header": {

"access-control-allow-credentials": "true",

"cache-control": "max-age=0, no-cache, no-store",

"content-encoding": "gzip",

"content-length": "91",

"content-type": "application/javascript;charset=iso-8859-1",

"date": "Wed, 10 Mar 2021 16:58:32 GMT",

"expires": "Wed, 10 Mar 2021 16:58:32 GMT",

"pragma": "no-cache",

"server": "Apache",

"server-timing": "edge; dur=1, origin; dur=50, cdn-cache; desc=MISS",

"status": "200",

"strict-transport-security": "max-age=15811200",

"vary": "Accept-Encoding",

"x-content-type-options": "nosniff",

"x-frame-options": "SAMEORIGIN",

"x-robots-tag": "noindex"

}

}

},

"protocols": [

"ipv4",

"tcp",

"https"

],

"type": "network-traffic"

}

},

"schema_version": "5.0",

"type": "package"

},

{

"id": "package--36e99aa9-abc1-468a-7035-e43756ce9250",

"maec_objects": [

{

"analysis_metadata": [

{

"analysis_type": "combined",

"conclusion": "unknown",

"description": "Automated phishing analysis inside a custom web browser",

"end_time": "2021-03-10T01:20:37.126363Z",

"is_automated": true,

"tool_refs": [

"1"

]

}

],

"id": "malware-instance--b9bcff27-b691-4040-55bb-a3620f2231ce",

"instance_object_refs": [

"0"

],

"type": "malware-instance"

}

],

"observable_objects": {

"0": {

"type": "url",

"value": "https://www.demisto.com"

},

"1": {

"name": "HtmlUnit v2.35",

"type": "software",

"vendor": "SourceForge Media, LLC dba Slashdot Media"

}

},

"schema_version": "5.0",

"type": "package"

},

{

"id": "package--903b10d4-d6b9-4a99-f09f-576dd0b36d51",

"maec_objects": [

{

"analysis_metadata": [

{

"analysis_type": "static",

"conclusion": "unknown",

"description": "Automated static URL analysis",

"end_time": "2021-03-10T15:43:25.604059Z",

"is_automated": true

},

{

"analysis_type": "static",

"conclusion": "benign",

"is_automated": true

}

],

"dynamic_features": {

"behavior_refs": [

"behavior--77aa4e6e-d9d1-46d6-1fc7-86ec1b24cd84"

]

},

"id": "malware-instance--4c958c0e-0cd1-4749-c887-a0372acfe8fc",

"instance_object_refs": [

"0"

],

"type": "malware-instance"

},

{

"description": "Known benign by a trusted source",

"id": "behavior--77aa4e6e-d9d1-46d6-1fc7-86ec1b24cd84",

"name": "trusted_list",

"type": "behavior"

}

],

"observable_objects": {

"0": {

"type": "url",

"value": "https://www.demisto.com"

}

},

"schema_version": "5.0",

"type": "package"

}

],

"primary_malware_instances": {

"package--36e99aa9-abc1-468a-7035-e43756ce9250": "malware-instance--b9bcff27-b691-4040-55bb-a3620f2231ce",

"package--5420f34e-5eb9-499b-c6a3-5f34abd73232": "malware-instance--df22b5b9-22b5-490a-9535-4f5ba7663455",

"package--903b10d4-d6b9-4a99-f09f-576dd0b36d51": "malware-instance--4c958c0e-0cd1-4749-c887-a0372acfe8fc"

},

"sa_package": "package--903b10d4-d6b9-4a99-f09f-576dd0b36d51",

"schema_version": "1.0",

"sha256": "288cd35401e334a2defc0b428d709f58d4ea28c8e9c6e47fdba88da2d6bc88a7",

"type": "wf-report",

"verdict": "benign"

}

}

}

Human Readable Output

Wildfire URL report for https://www.demisto.com

sha256	type	verdict
288cd35401e334a2defc0b428d709f58d4ea28c8e9c6e47fdba88da2d6bc88a7	wf-report	benign

wildfire-get-verdict

---

Returns a verdict for a hash.

Base Command

wildfire-get-verdict

Input

Argument Name	Description	Required
hash	Hash to get the verdict for.	Required

Context Output

Path	Type	Description
WildFire.Verdicts.MD5	string	MD5 hash of the file.
WildFire.Verdicts.SHA256	string	SHA256 hash of the file.
WildFire.Verdicts.Verdict	number	Verdict of the file.
WildFire.Verdicts.VerdictDescription	string	Description of the file verdict.
DBotScore.Indicator	string	The indicator that was tested.
DBotScore.Type	string	The indicator type.
DBotScore.Vendor	string	Vendor used to calculate the score.
DBotScore.Score	number	The actual score.

Command Example

!wildfire-get-verdict hash=afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc

Context Example

{

"DBotScore": [

{

"Indicator": "afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc",

"Score": 3,

"Type": "hash",

"Vendor": "WildFire"

},

{

"Indicator": "afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc",

"Score": 3,

"Type": "file",

"Vendor": "WildFire"

}

],

"WildFire": {

"Verdicts": {

"MD5": "0e4e3c2d84a9bc726a50b3c91346fbb1",

"SHA256": "afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc",

"Verdict": "1",

"VerdictDescription": "malware"

}

}

}

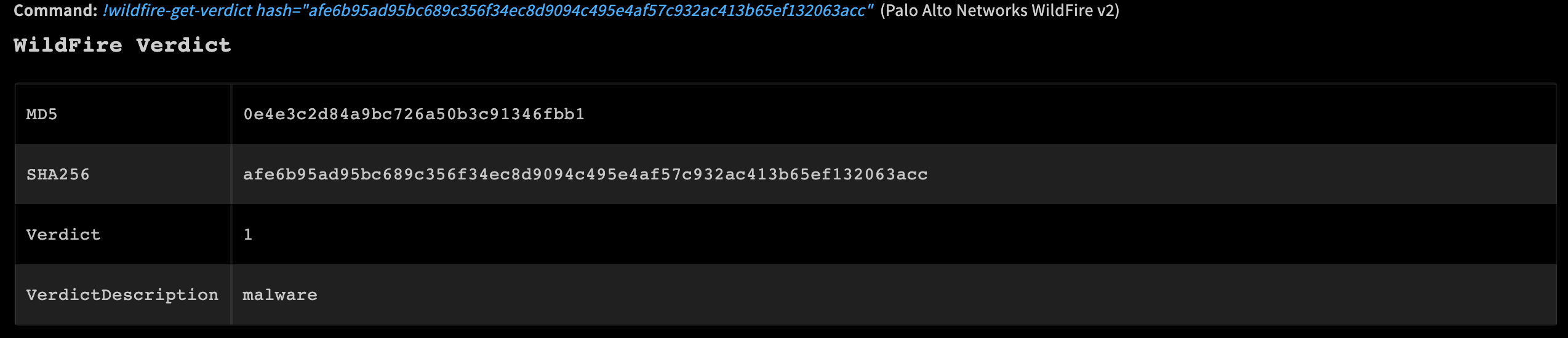

Human Readable Output

WildFire Verdict

MD5	SHA256	Verdict	VerdictDescription
0e4e3c2d84a9bc726a50b3c91346fbb1	afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc	1	malware

wildfire-get-verdicts

---

Returns a verdict regarding multiple hashes, stored in a TXT file or given as list.

Base Command

wildfire-get-verdicts

Input

Argument Name	Description	Required
EntryID	EntryID of the text file that contains multiple hashes. Limit is 500 hashes.	Optional
hash_list	A list of hashes to get verdicts for.	Optional

Context Output

Path	Type	Description
WildFire.Verdicts.MD5	string	MD5 hash of the file.
WildFire.Verdicts.SHA256	string	SHA256 hash of the file.
WildFire.Verdicts.Verdict	number	Verdict of the file.
WildFire.Verdicts.VerdictDescription	string	Description of the file verdict.
DBotScore.Indicator	string	The indicator that was tested.
DBotScore.Type	string	The indicator type.
DBotScore.Vendor	string	Vendor used to calculate the score.
DBotScore.Score	number	The actual score.

Command Example

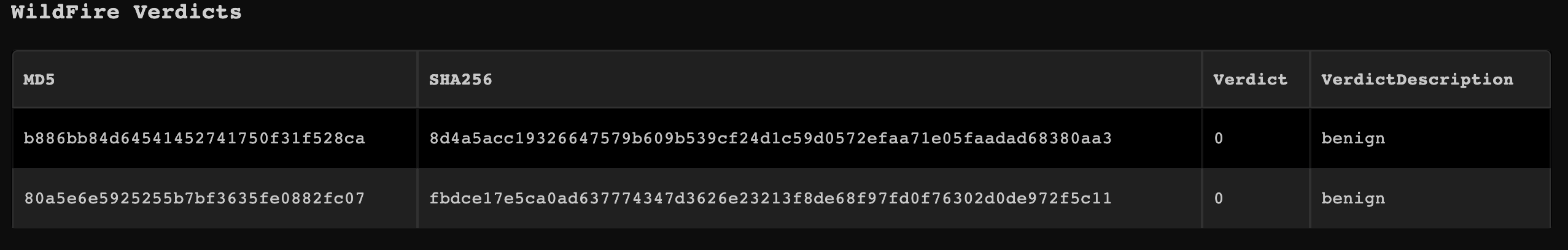

Human Readable Output

wildfire-upload-url

---

Uploads a URL of a webpage to WildFire for analysis.

Base Command

wildfire-upload-url

Input

Argument Name	Description	Required
upload	URL to submit to WildFire.	Required

Context Output

Path	Type	Description
WildFire.Report.MD5	string	MD5 of the submission.
WildFire.Report.SHA256	string	SHA256 of the submission.
WildFire.Report.Status	string	The status of the submission.
WildFire.Report.URL	string	URL of the submission.

Command Example

!wildfire-upload-url upload=https://www.demisto.com

Context Example

{

"WildFire": {

"Report": {

"MD5": "67632f32e6af123aa8ffd1fe8765a783",

"SHA256": "c51a8231d1be07a2545ac99e86a25c5d68f88380b7ebf7ac91501661e6d678bb",

"Status": "Pending",

"URL": "https://www.demisto.com"

}

}

}

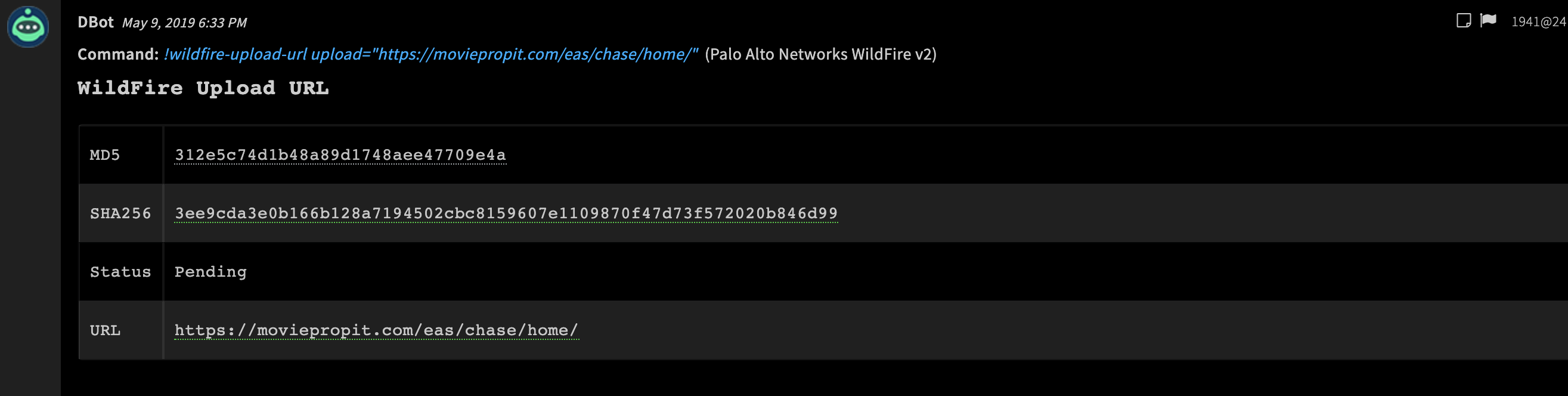

Human Readable Output

WildFire Upload URL

MD5	SHA256	Status	URL
67632f32e6af123aa8ffd1fe8765a783	c51a8231d1be07a2545ac99e86a25c5d68f88380b7ebf7ac91501661e6d678bb	Pending	https://www.demisto.com

wildfire-get-sample

---

Retrieves a sample.

Base Command

wildfire-get-sample

Input

Argument Name	Description	Required
md5	MD5 hash of the sample.	Optional
sha256	SHA256 hash of the sample.	Optional

Context Output

There is no context output for this command.

Command Example

!wildfire-get-sample sha256=afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc

Context Example

{

"File": {

"EntryID": "318@675f238c-ed75-4cae-83d2-02b6b820168b",

"Extension": "xls",

"Info": "application/vnd.ms-excel",

"MD5": "0e4e3c2d84a9bc726a50b3c91346fbb1",

"Name": "afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc.xls",

"SHA1": "52eb16966670b76f8728fda28c48bc6c49f20e07",

"SHA256": "afe6b95ad95bc689c356f34ec8d9094c495e4af57c932ac413b65ef132063acc",

"SHA512": "4634c1e7ae6526527167682a8b5f0aa6d0e5a17c7bd3b8ee6ac81b9f306577e543a89afbcbfe2a5a6178e7225fe35aa01a49ab814dc5d4917b2312787bb3c165",

"SSDeep": "1536:zeeeqopd5TCMWNo/QXo3VjgvRjha2wnLW8W:odpCMW6QIFAf8W",

"Size": 86016,

"Type": "Composite Document File V2 Document, Little Endian, Os: Windows, Version 5.2, Code page: 936, Name of Creating Application: Microsoft Excel, Create Time/Date: Tue Dec 17 01:32:42 1996, Last Saved Time/Date: Mon May 11 03:39:41 2009, Security: 0"

}

}

Human Readable Output

wildfire-get-url-webartifacts

---

Get web artifacts for a URL webpage. An empty tgz will be returned, no matter what the verdict, or even if the URL is malformed.

Base Command

wildfire-get-url-webartifacts

Input

Argument Name	Description	Required
url	URL of the webpage.	Required
types	Whether to download as screenshots or as downloadable files. if not specified, both will be downloaded. Possible values are: download_files, screenshot.	Optional

Context Output

Path	Type	Description
InfoFile.EntryID	Unknown	The EntryID of the webartifacts.
InfoFile.Extension	string	Extension of the webartifacts.
InfoFile.Name	string	Name of the webartifacts.
InfoFile.Info	string	Details of the webartifacts.
InfoFile.Size	number	Size of the webartifacts.
InfoFile.Type	string	The webartifacts file type.

Command Example

!wildfire-get-url-webartifacts url=http://royalmail-login.com

Context Example

{

"InfoFile": {

"EntryID": "326@675f238c-ed75-4cae-83d2-02b6b820168b",

"Extension": "tgz",

"Info": "tgz",

"Name": "http://royalmail-login.com_webartifacts.tgz",

"Size": 619775,

"Type": "gzip compressed data, original size modulo 2^32 1828864"

}

}

Human Readable Output
